11
50mm on the sides of the UPS for ventilation.
Ensure that the front of the UPS remains clear for user operation.
The External Battery Cabinets has to be installed next to the UPS or under the UPS.
Caution! The UPS and the External Battery Pack are to be installed at the same location. In
case, the UPS and the External Battery Pack are installed outside of visible distance, then
subject to the local inspection authority, User will need to add a Safety disconnect adjacent
to the UPS to provide safety isolation.
5.2 Rear panel views

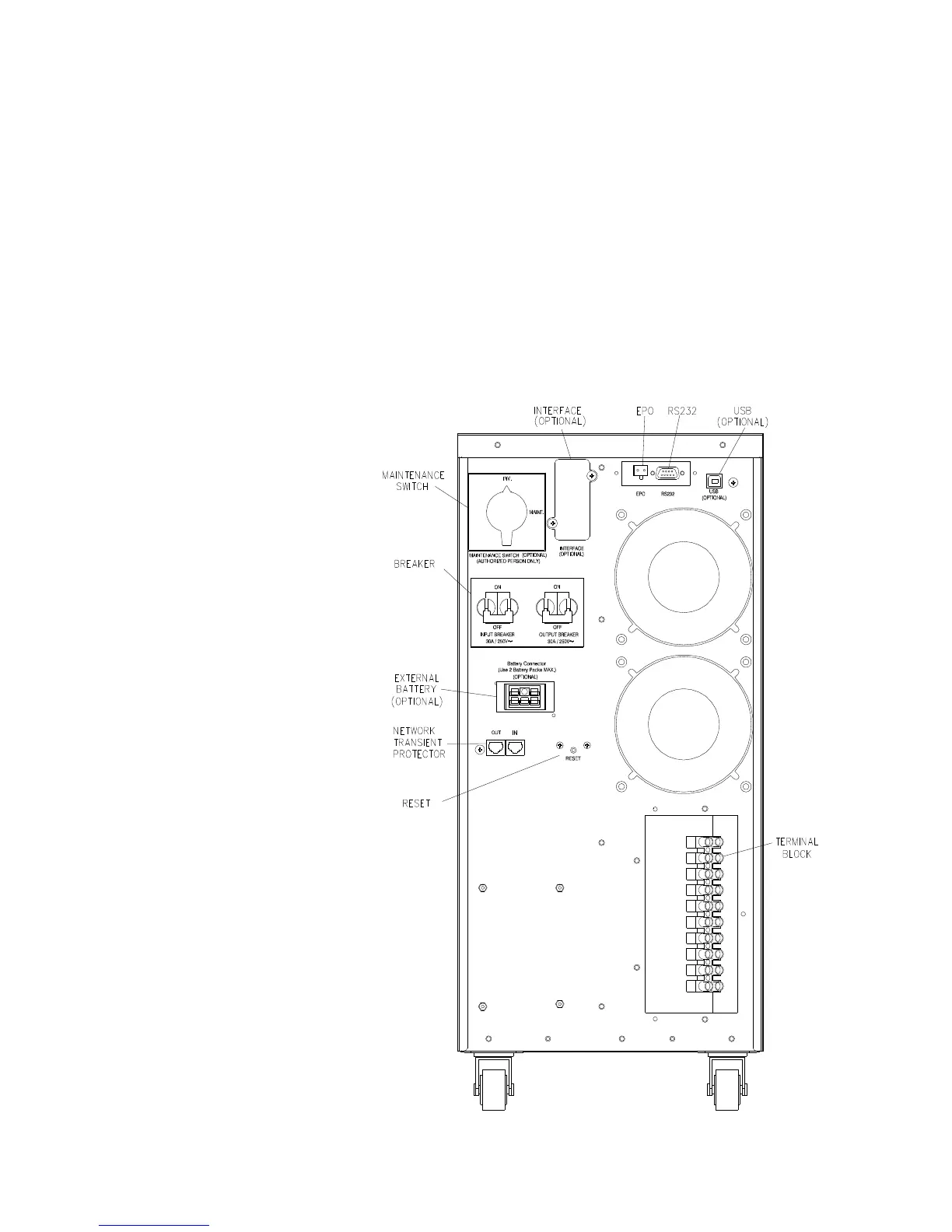

6000VA Tower Rear panel
