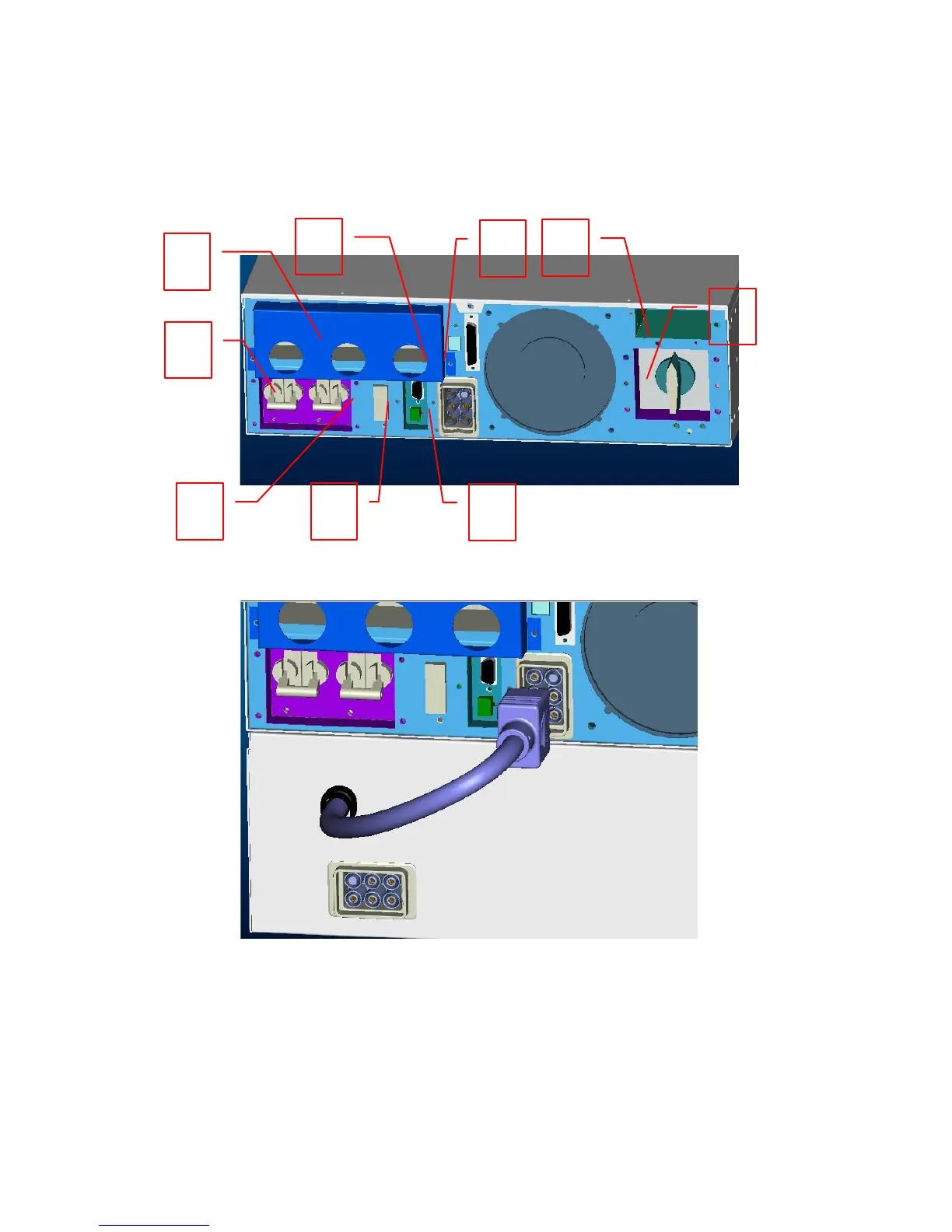

I. BREAKER
J. EXTERNAL BATTERY CONNECTOR
K. BYPASS SWITCH
L. SNMP SLOT
M. RS232 + EPO
N. TVSS
O. USB
P. REMOTE CONTROL PORT
(3) Connect the Battery cabinet to UPS:
(4) FEATURE of REMOTE CONTROL FUNCTION:
a. Remove the original right side panel and take apart the control panel unit. Then assemble
the blank right side panel.
H
J
M
N
O
I
P
L
K
