Enplus EVO UPS 6000VA - Page 36

43

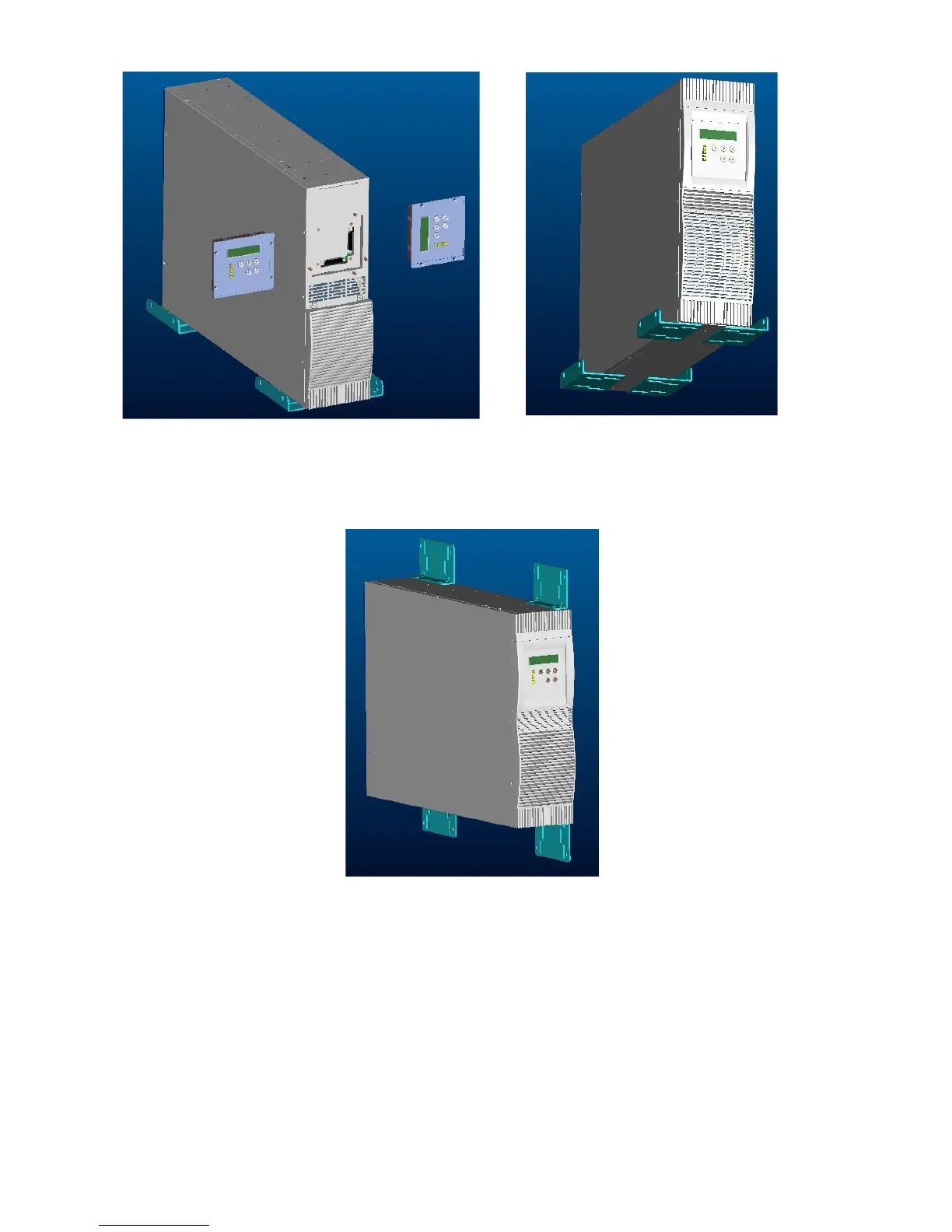

(4) Wall installation:
Move the mounting brackets from the front to the side and attach the brackets by screws.
Then mount the UPS to the wall as the below pictures shown.
(5) Installation with rear Bracket:
We can use bracket to support the rear side of UPS or battery cabinet.
