• See paragraph 7.1.3 for the application of the vacuum electrodes.
• When you use only one vacuum channel, close the other channel with one of the vacuum cables
not in use.
• See paragraph 8.2.3.4 for operating the vacuum unit.
8 Operating Instructions

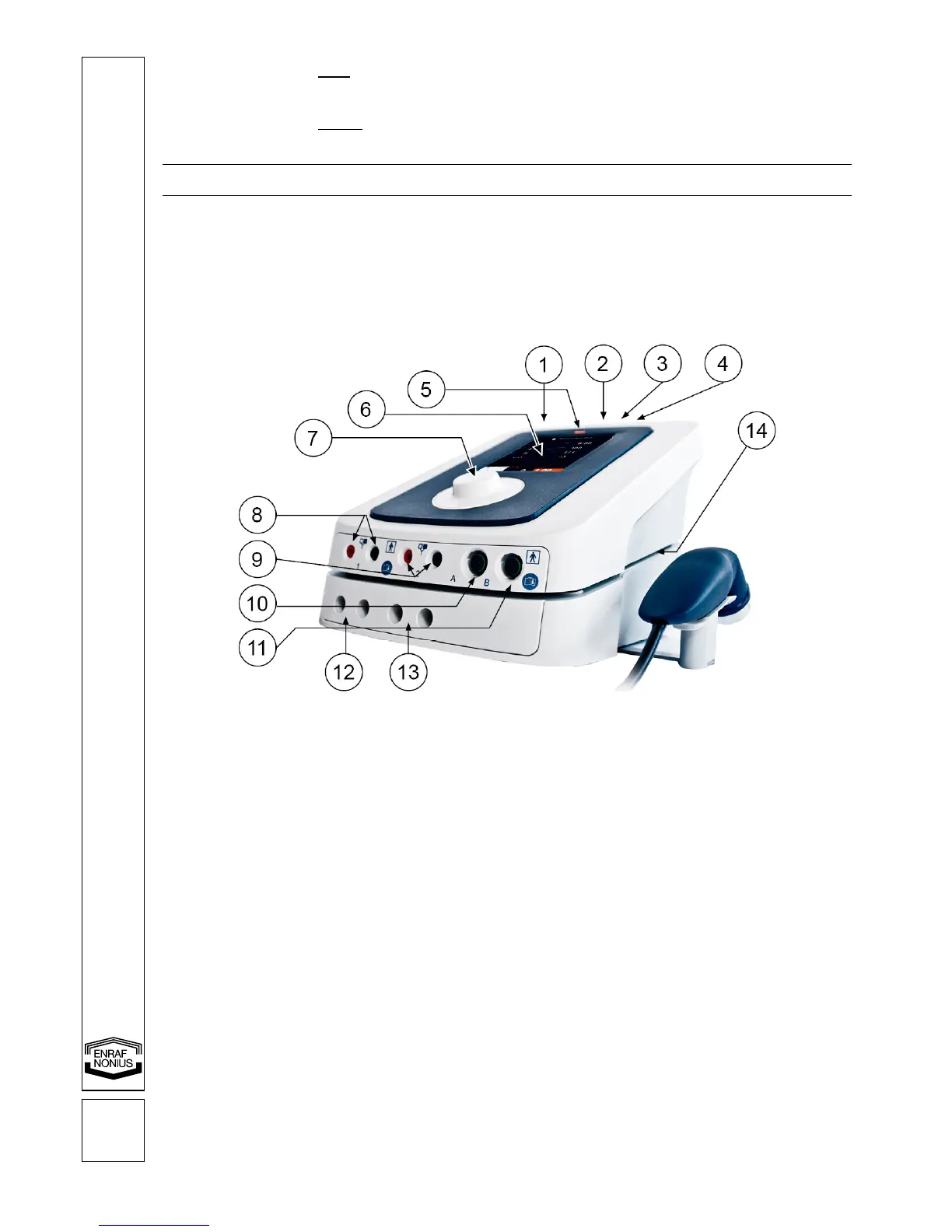

8.1 Operator Controls
[1] Power line switch
0 Device disconnected from mains supply
1 Device connected to mains supply
[2] Connector for mains cable
Type number/warning sticker
Provides information on the apparatus, such as type and serial number, as well as connection data such
as mains voltage and maximum current consumption.
[3] Remote Control connection
This connection has two functions.
1 Attachment of optional remote control unit. Used to remotely adjust the output current on the
electrotherapy channels or to stop the treatment on all channels.
2 Attachment of a USB-stick. Used for software updates and to store-up user data.
! WARNING:
• Do not connect externally powered USB devices or other information technology equipment as
this can adversely affect the safety of the patient.
