RAK112B_ENG / 2023-06-27
16 / 40
7.5. EVF200 mounting on Unimi concrete foundation
This example describes the installation procedure when a concrete foundation supplied by Unimi Solu-
tions is used.
Installation accessories
Ground mounting box EVTL32.00 / EVTL34.00 1 pcs
Please order the following items from www.unimi.se
Concrete foundation Ensto Pro, product code 100-1 1 pcs
Cover plate 1 pcs
Ensto EVF compatible adapter element, product code 100-13 1 pcs
Installation steps

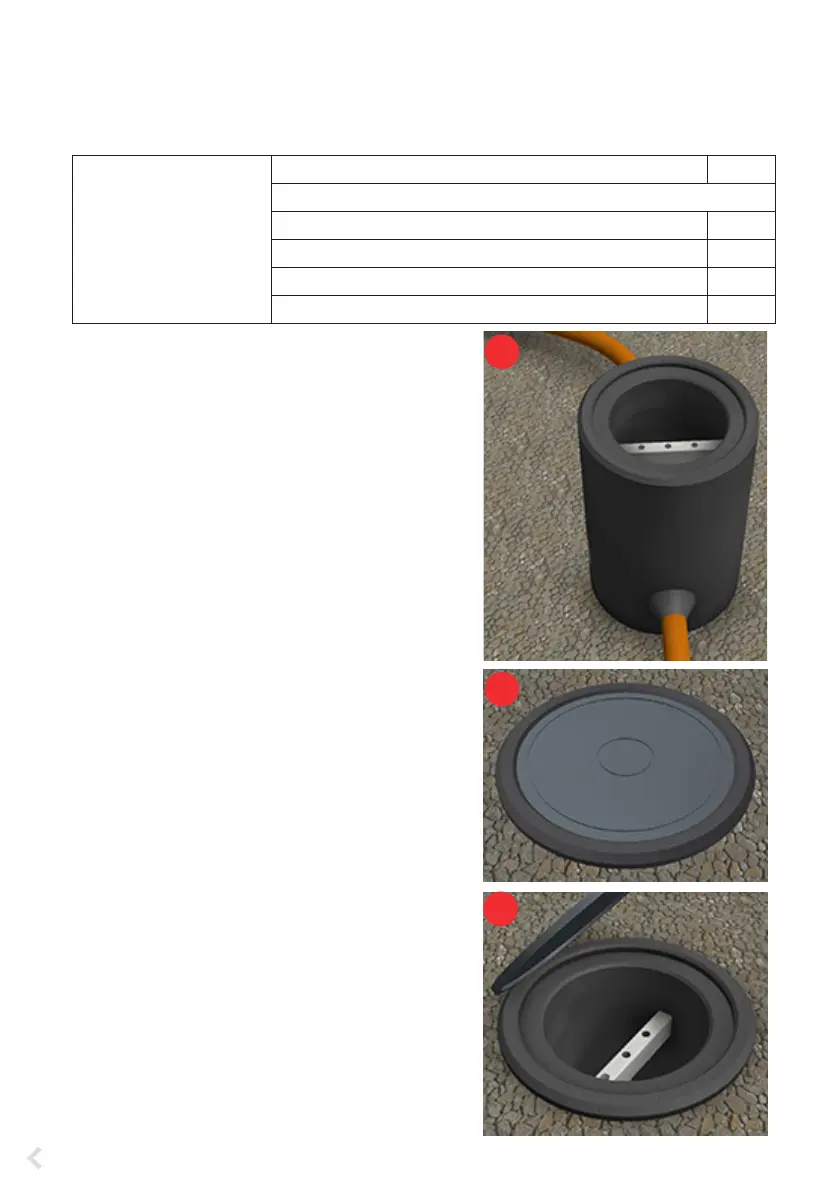

Figure 1
• Dig a trench for cable conduits and an excavation
pit for the concrete foundation to applicable depths.
The pit oor should be compacted and level.
• Adjust the depth of the pit so that the top of the
foundation will be ush with the nal surrounding
ground surface. Take into consideration the possible
paving materials.
• Close the unused conduit openings with plugs in-
cluded in the foundation delivery.
• Lift the foundation into the installation pit. You can
use the attachment bar embedded in the foundation
as a lifting point. Make sure that the mounting bar
is in a direction that enables the installation of the
charging station in correct position.
• Put cable conduits into the trenches and install the
conduits to relevant inlets.
• Pull electric cables through the conduits into the
foundation.
Figure 2
• Tighten the foundation to its place by lling the ex-
cess space outside the foundation with gravel.
• Set the nal layer of gravel so that the top of the
foundation will be ush with ground or the nal pav-
ing material.
• Always put a cover plate on the foundation if the
charging station is installed in a separate session
than the foundation.
Figure 3
• Remove the cover plate before you start the instal-
lation work.
1
2
3
