Installation steps
1. Drill a hole in the concrete for the anchor bolts. For more information see the anchor bolt instruc-
tions. Use the ground mounting box as a jig.
2. Put the anchor bolts in place and tighten the anchor bolt nuts.
3. Adjust the upper nuts and washers on the anchor bolts horizontally. Use a spirit level.

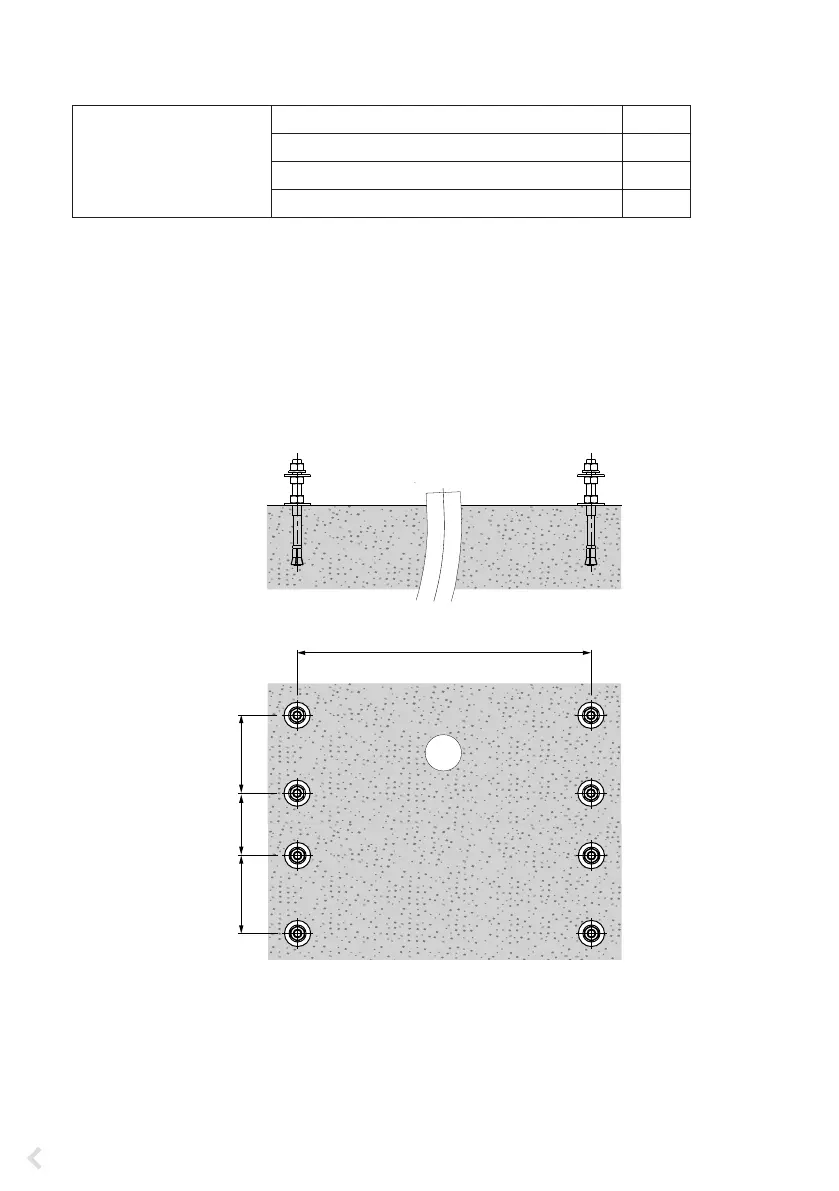

7.6. EVF300 mounting on concrete casting at site
Installation accessories
Ground mounting box EVTL35.00 1 pcs
Anchor bolts M12 8 pcs
Washers
Nuts
Make sure that the materials used for the concrete foundation and the installation procedures follow local
building regulations and safety standards.
• Dig a trench for cable conduits and an excavation pit for the concrete foundation. The pit oor
should be compacted and level.
• Install the cable pipes for supply and output chaining and, if necessary, the cable pipe for the data
cable into the ground.
• Fill the pit with concrete.
• Let the concrete cure, make sure the surface stays level during the process.
415
110
110
77
