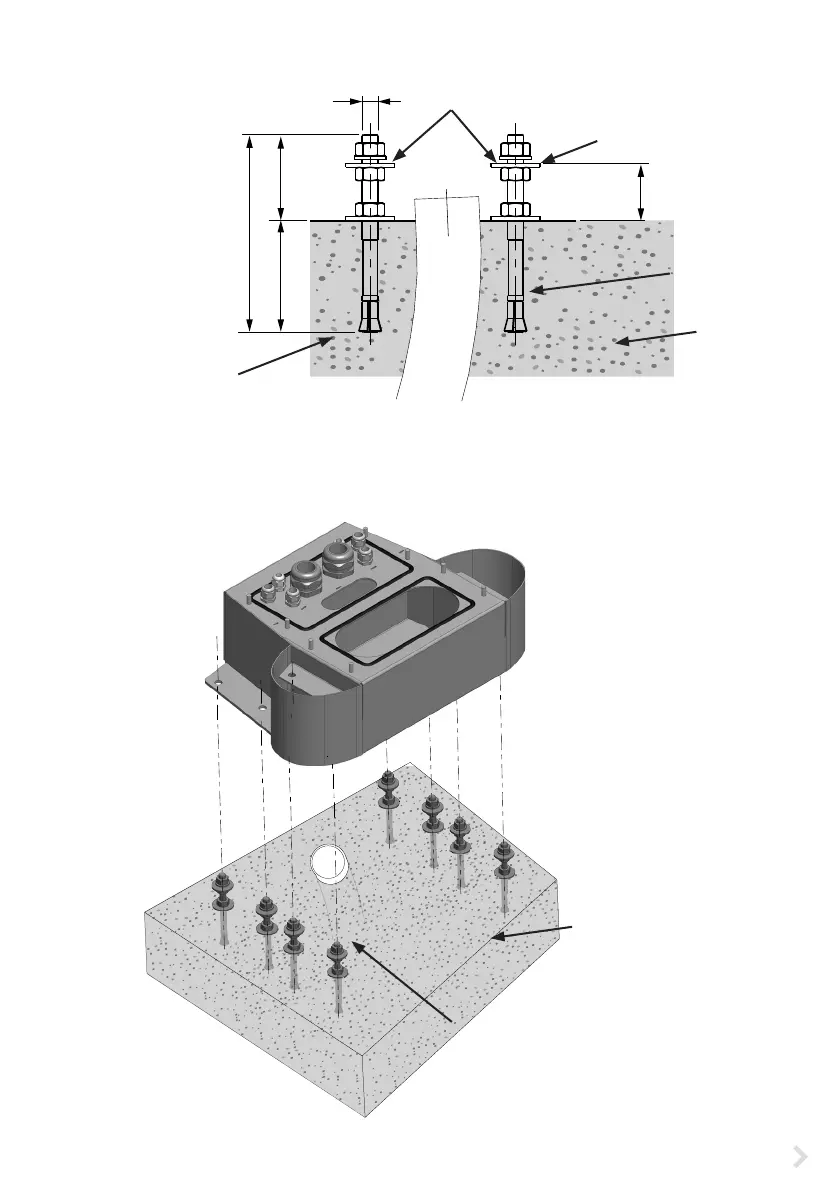

4. Attach the mounting box to the anchor bolts with applicable washers and nuts.
5. Pull electrical cables through the ground mounting box cable gland(s) approx. 450 mm measured
from the upper surface of the mounting box.
6. Tighten the cable gland(s). Close the unused cable entries with cable gland plugs.
43
M12
(150)
(64) 86
Washer upper surface
measured from ground
Adjust to the
same level
Select anchor bolts
applicable for the
thickness and strength
of the concrete
Anchor bolt
Concrete
Anchor bolt
Concrete
