21. Charging
21.1. Free charging
User Guide
20. User Interfaces

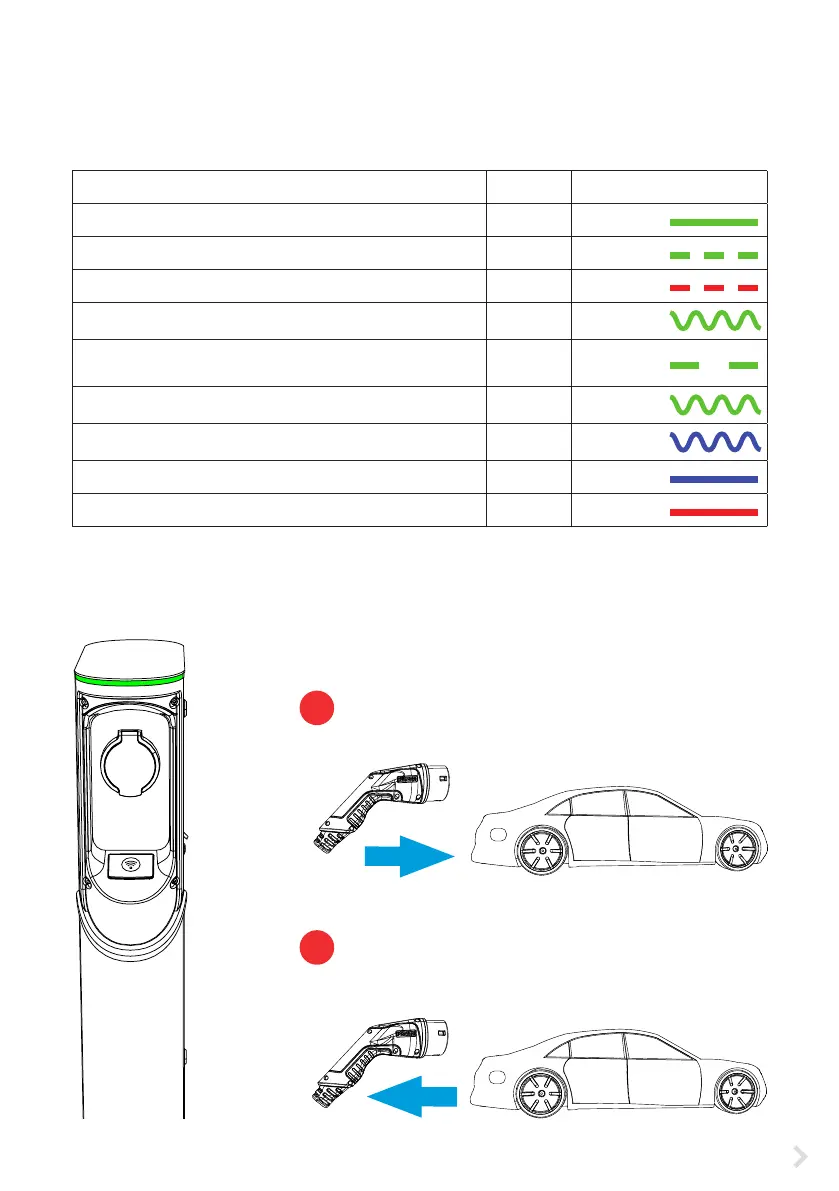

LED indicator lights will show the status of the charging point as described below:
Charging point’s status
LED light LED operation
The charging point is free and ready to use
Green Stable
RFID read, authorization ongoing
Green Flashing
Charging authorization rejected
Red Flashing
Authorization accepted, charging allowed
Green Waving
While you connect the charging cable
Green
Flashing
twice
Your vehicle is connected, charging has not started
Green Waving
Your vehicle is connected, charging starts
Blue Waving
Charging ongoing
Blue Stable
Error state
Red Stable
Start charging
When the charging point is free and the LED indicator shows green, you
can start a charging event.
Plug the charging cable to your electric vehicle.
Plug the charging cable to the charging point.
The LED indicator turns to stable blue.
Stop charging
Unplug the charging cable from the charging point.
Unplug the charging cable from your electric vehicle.
After you have unplugged the charging point is free for the
next user.
