Setting Up the Matrix E7 Chassis
3-7

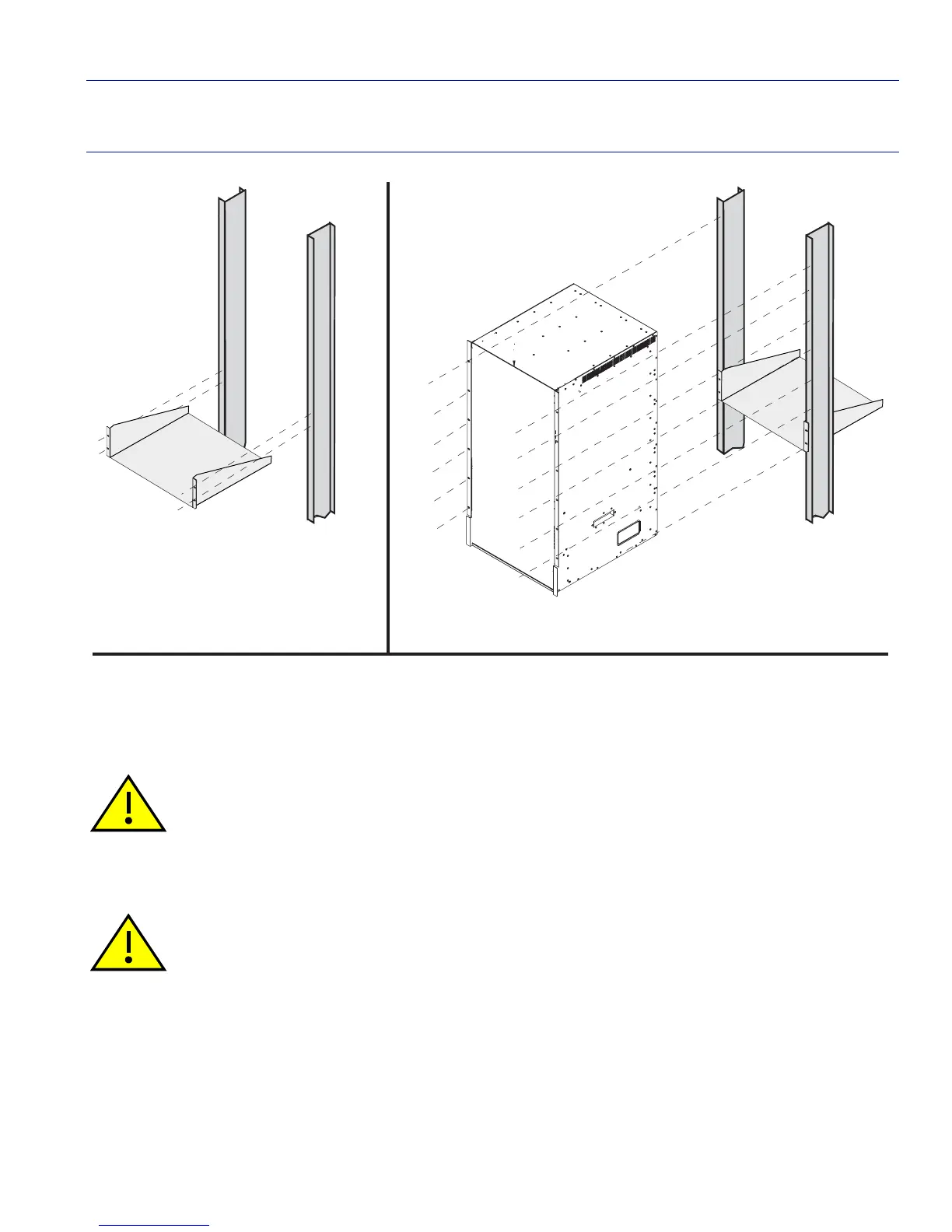

Figure 3-3 Shelf Installation
3.2.3.2 Installing the Matrix E7 Chassis
To install the Matrix E7 chassis, proceed as follows:
1. Lift the chassis onto the shelf and slide it all the way into the rack. Refer back to Figure 3-3, B.
CAUTION: Read Chapter 2 before completing the following procedure to ensure that
all installation guidelines are met.
CAUTION: To help prevent personal injury, at least two people are required to lift the
chassis into the rack.
AB
3280_18
