Setting Up the Matrix E7 Chassis
3-8
2. Use 12 screws provided with the equipment rack to secure the chassis to the rack, starting with
the bottom holes and working toward the top of the chassis, as shown in Figure 3-4.

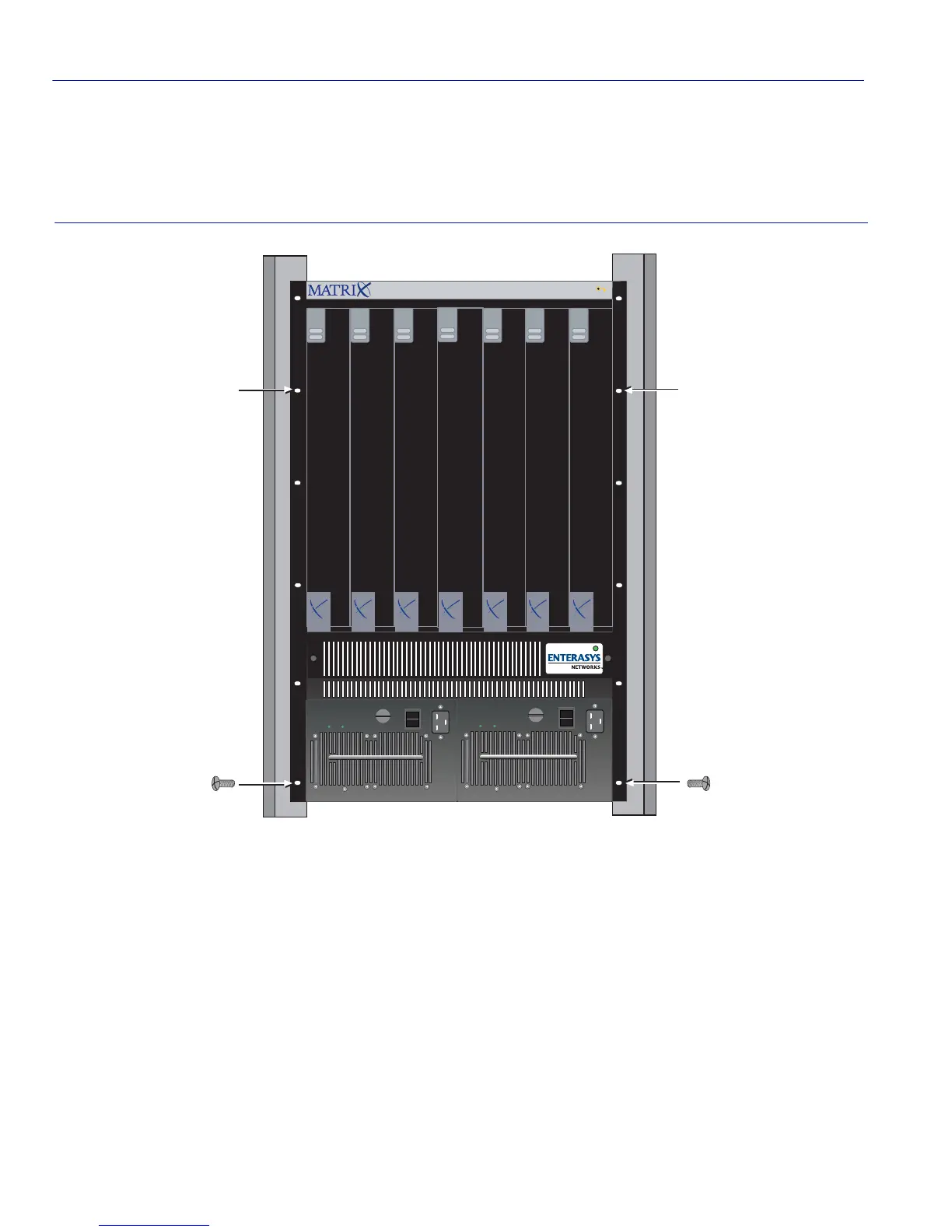

Figure 3-4 Rack Mounting the Matrix E7 Chassis
3.2.3.3 Attaching the Electrostatic Discharge Wrist Strap
The Electrostatic Discharge (ESD) wrist strap must be attached before handling the power
supplies, fan tray, and modules used in the Matrix E7 chassis. In addition, observe all precautions
when handling these modules to prevent damage from electrostatic discharge.
Place the ESD wrist strap on your wrist and plug the other end into the grounding receptacle, at the
top right corner of the chassis, shown in Figure 3-5.
3280-01-05
Rack Mounting
Holes (6 per side)
Rack Mounting
Screws
(6 per side)
Rack Mounting
Holes (6 per side)
Rack Mounting
Screws
(6 per side)
SERIES E7
4 5
6
7
1
2 3
50/60Hz
LINE
100-125V~12A
200-240V~6A
AC ON
ACON
1
0
POWER FAN
50/60Hz
LINE
100-125V~12A
200-240V~6A
AC ON
ACON
1
0
POWER FAN
