3.3 POWERING UP A MATRIX E7 CHASSIS WITH POWER SUPPLIES
To power up a Matrix E7 chassis with ac power supplies, proceed as follows:
Plug one end of the power cord (supplied with the power supply) into the ac power socket on the
front panel of the power supply.
1. See Figure 3-8 for the 6C207-1 power connections and Figure 3-9 for the 6C207-3 power
connections.

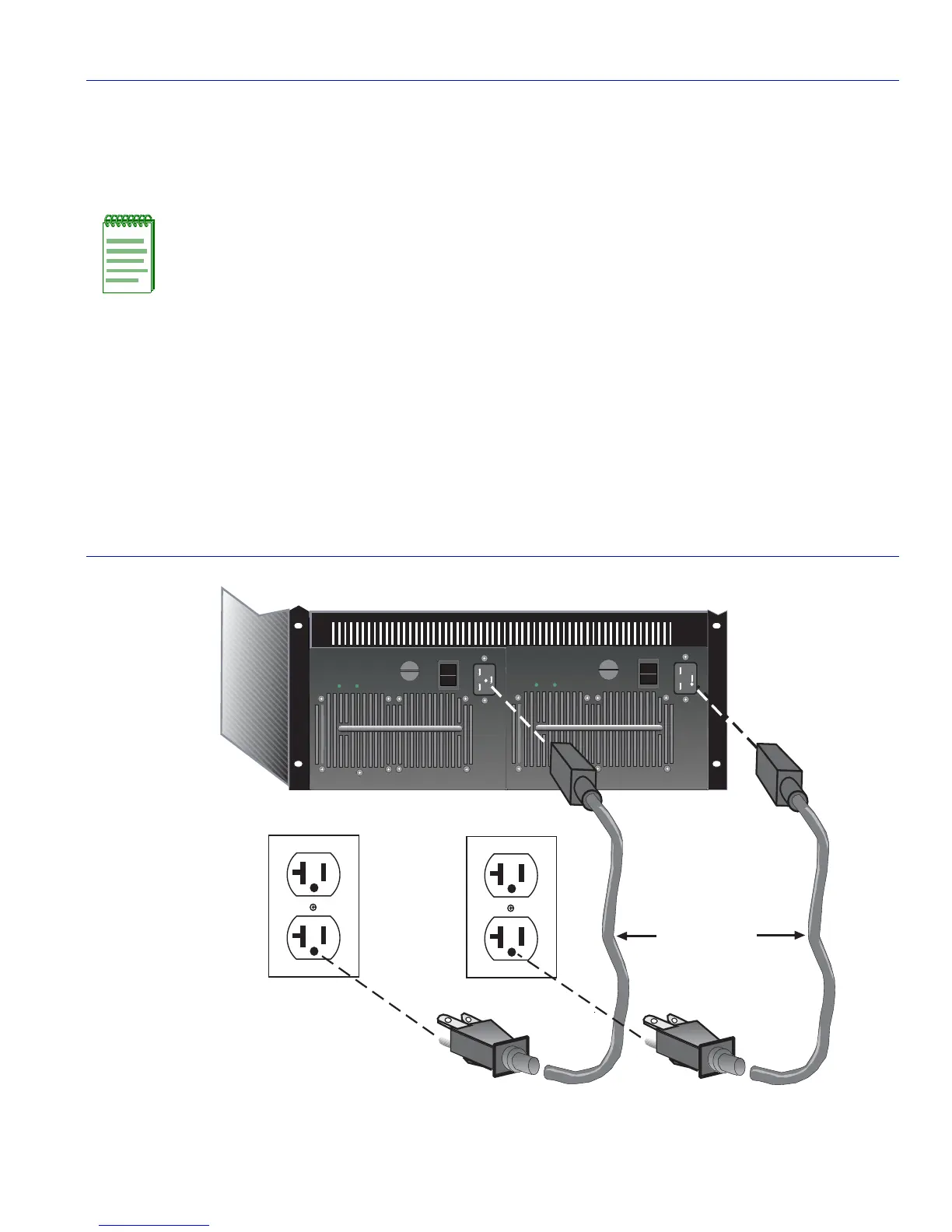

Figure 3-8 Connecting the 20-Amp AC Power Cord to the 6C207-1
NOTE: If two power supplies are installed, repeat the following procedure for each
supply.
For proper redundancy using two 6C207-1 power supplies, the power cord from each
power supply must be connected to a dedicated 20-Ampere ac power circuit.
For redundancy using two 6C207-3 power supplies, each of the four power cords from
the two power supplies must be connected to dedicated 15-Ampere ac power circuits.
3280-02-16
50/60Hz
LINE
100-125V~12A
200-240V~6A
AC ON
ACON
1
0
POWER FAN
50/60Hz
LINE
100-125V~12A
200-240V~6A
AC ON
ACON
1
0
POWER FAN
115 Vac, 20 A
Power Outlet
115 Vac, 20 A
Power Outlet
NEMA 5-20P
20 A Power
Cords (2)
Notes:
Power cords shown are for
North America only.
Each outlet must be on a
separate circuit.
To Next Page
