LANVIEW LEDs
Installation Requirements and Guidelines 2-3

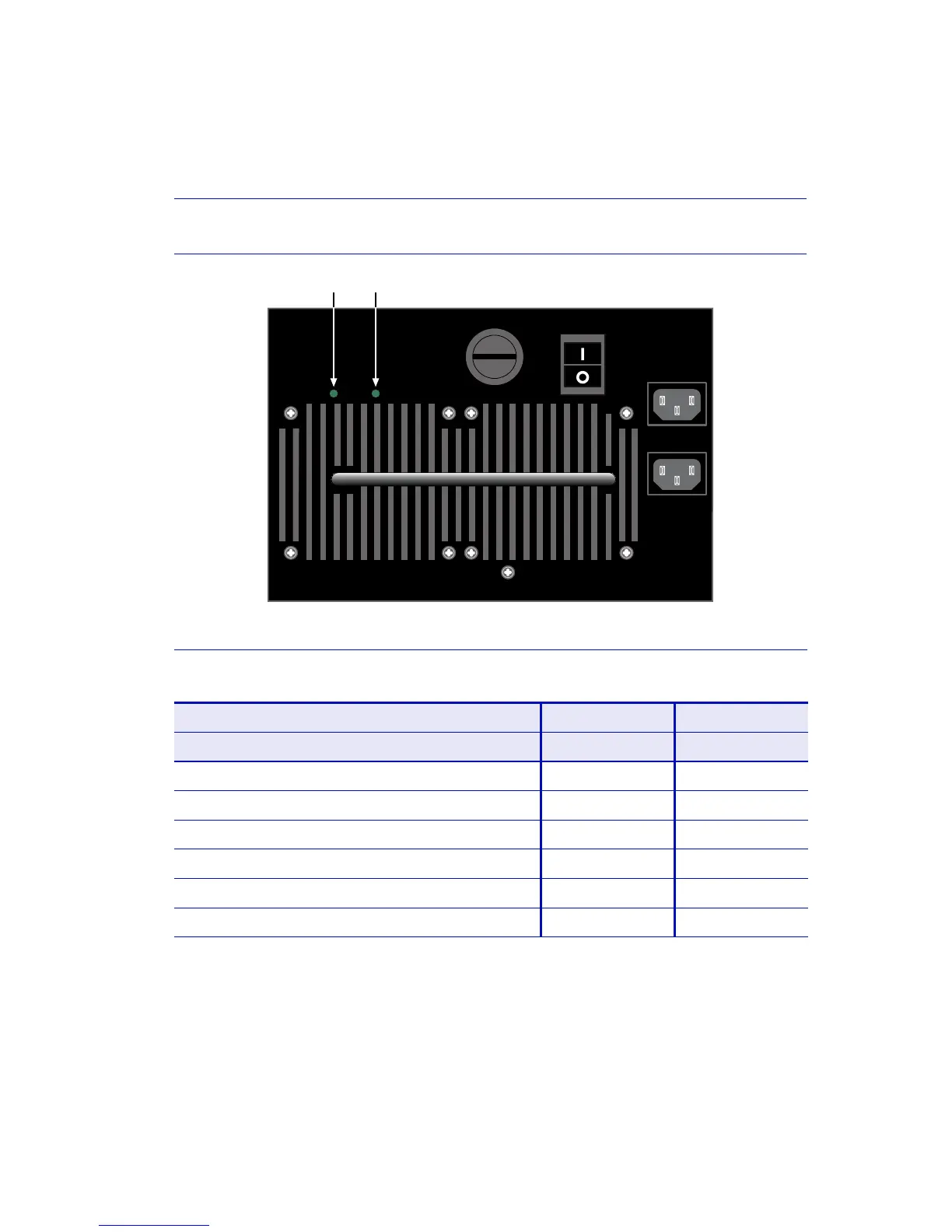

Figure 2-1 6C207-3 Power Supply LEDs
➀
POWER LED
➁
FAN LED
Table 2-1 Power Supply (PS) LED Status Definitions
Condition PS1 PS2 Load PS1 LEDs PS2 LEDs
POWER FAN POWER FAN
1 ON OFF Amber Green Red Red
2 OFF ON Red Red Amber Green
3 ON Out of chassis Green Green Off Off
4 Out of chassis ON Off Off Green Green
5 ON ON <50% Green Green Green Green
6 ON ON >50% Amber Green Amber Green
À
Á
50/60Hz
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
LINE 1:
100-125V~10A
200-240V~5A
POWER FAN
