Setting Up the Matrix N7 Chassis
3-6 Matrix N7 Chassis Setup
3.2.2.2 Installing the Cable Management Bar
Cables can be attached along the cable management bar using cable ties to ensure that the cables
are not accidentally loosened or disconnected from the chassis during operation. To install the
cable management bar, see Figure 3-3 and proceed as follows:
1. Remove the cable management bar from the shipping box. Ensure that there are four screws
inside the bag with the cable management bar.
2. Line up the two holes on each side of the cable management bar
➀ with the four holes located
on the bottom of the Matrix N7 chassis
➁, near the front of the chassis ➂ as shown in
Figure 3-3.
3. Use a Phillips screwdriver and the four screws supplied
➃ with the bar to fasten the cable
management bar
➀ to the bottom of the chassis ➁.

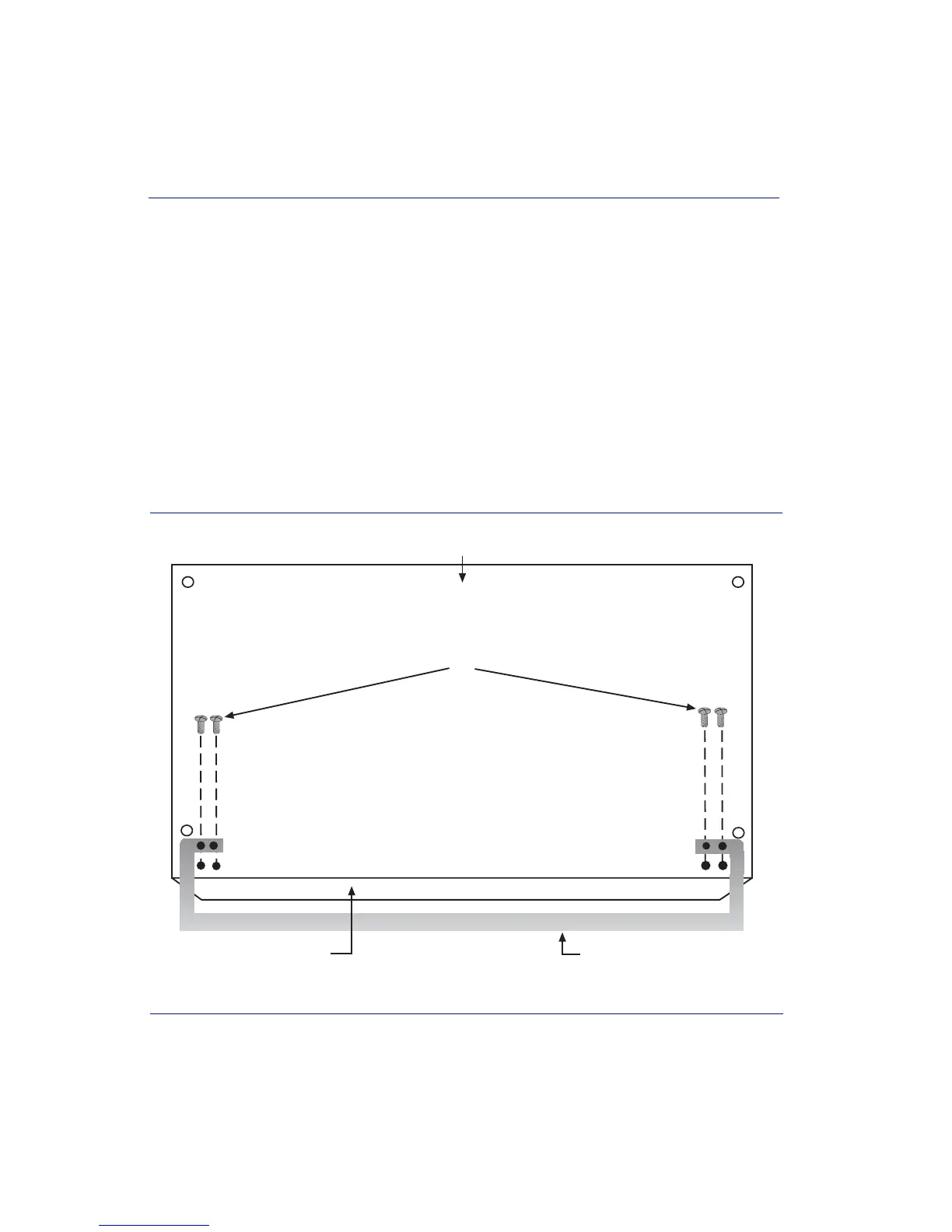

Figure 3-3 Installing the Cable Management Bar
➀
Cable management bar
➂
Front panel of chassis
➁
Bottom of chassis
➃
Screws (4)
Â
Á
Ã
À
