Enterasys Matrix N7 7C107 Installation Guide

Setting Up the Matrix N7 Chassis
Matrix N7 Chassis Setup 3-5
3.2.2.1 Installing the Rubber Feet
To install the rubber feet, see Figure 3-2 and proceed as follows:
1. Place the chassis on a sturdy flat surface to access the bottom of the chassis
➀.
2. Remove the four rubber foot/screw assemblies from their plastic bag in the shipping box.
3. Locate the four tapped holes
➁ in the four corners on the bottom of the chassis.

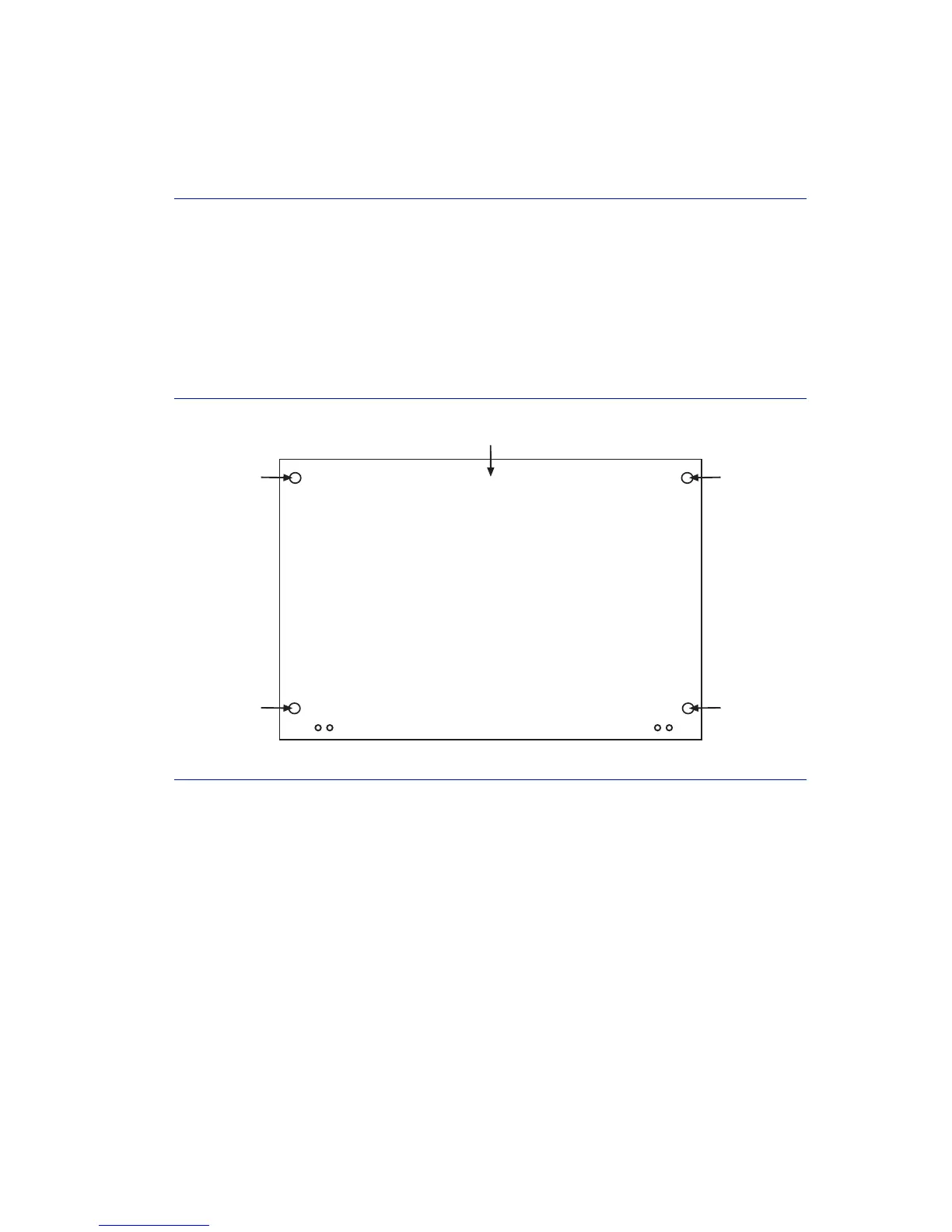

Figure 3-2 Chassis Bottom, Rubber Feet Placement
4. Screw in and hand tighten each of the four rubber foot/screw assemblies into the four tapped
holes. Then tighten with a Phillips screwdriver.
5. After installing the rubber feet, proceed to Section 3.2.2.2 to install the cable management bar.
➀
Bottom of chassis
➁
Tapped hole for rubber foot (four places)
Á
Á
Á
Á
À
