Setting Up the Matrix N7 Chassis
3-8 Matrix N7 Chassis Setup

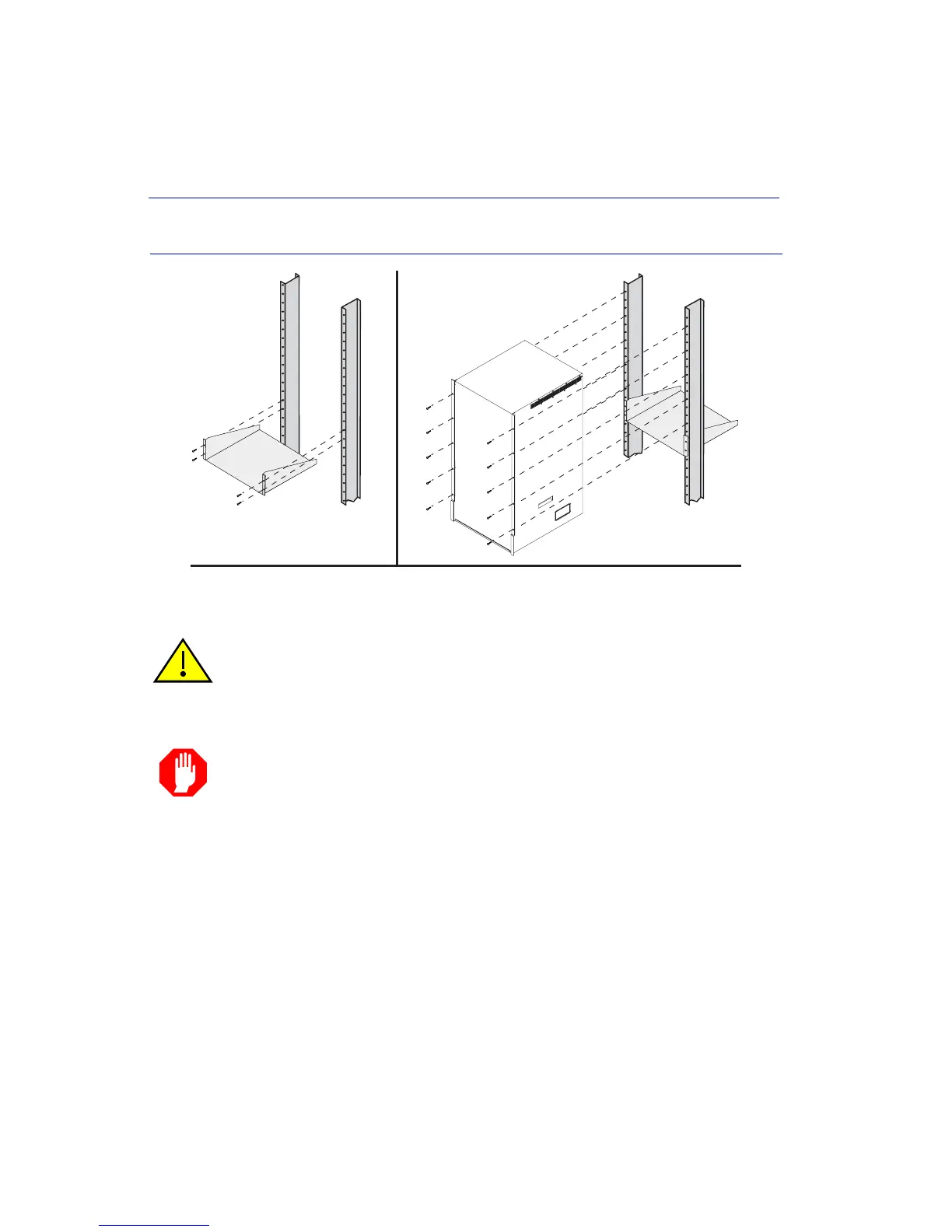

Figure 3-4 Shelf Installation
3.2.3.2 Installing the Matrix N7 Chassis
To install the Matrix N7 chassis, proceed as follows:
1. Lift the chassis onto the shelf and slide it all the way into the rack. Refer back to Figure 3-4, B.
2. Use 10 screws (5 per side)
➀ provided with the equipment rack to secure the chassis to the rack,
starting with the bottom holes and working toward the top of the chassis, as shown in Figure 3-5.
CAUTION: Read Chapter 2 before completing the following procedure to ensure that
all installation guidelines are met.
WARNING: To help prevent personal injury, at least two people are required to lift the
chassis into the rack.
ADVERTENCIA: Para ayudar a prevenir alguna lesión personal , al menos dos
personas son requeridas para levantar el chasis y meterlo al rack.
WARNHINWEIS: Zum Schutz vor körperlichen Schäden, sollten sie mit min. zwei
Personen das Chassis in das Rack heben.
