Description of Hardware
1-3
1

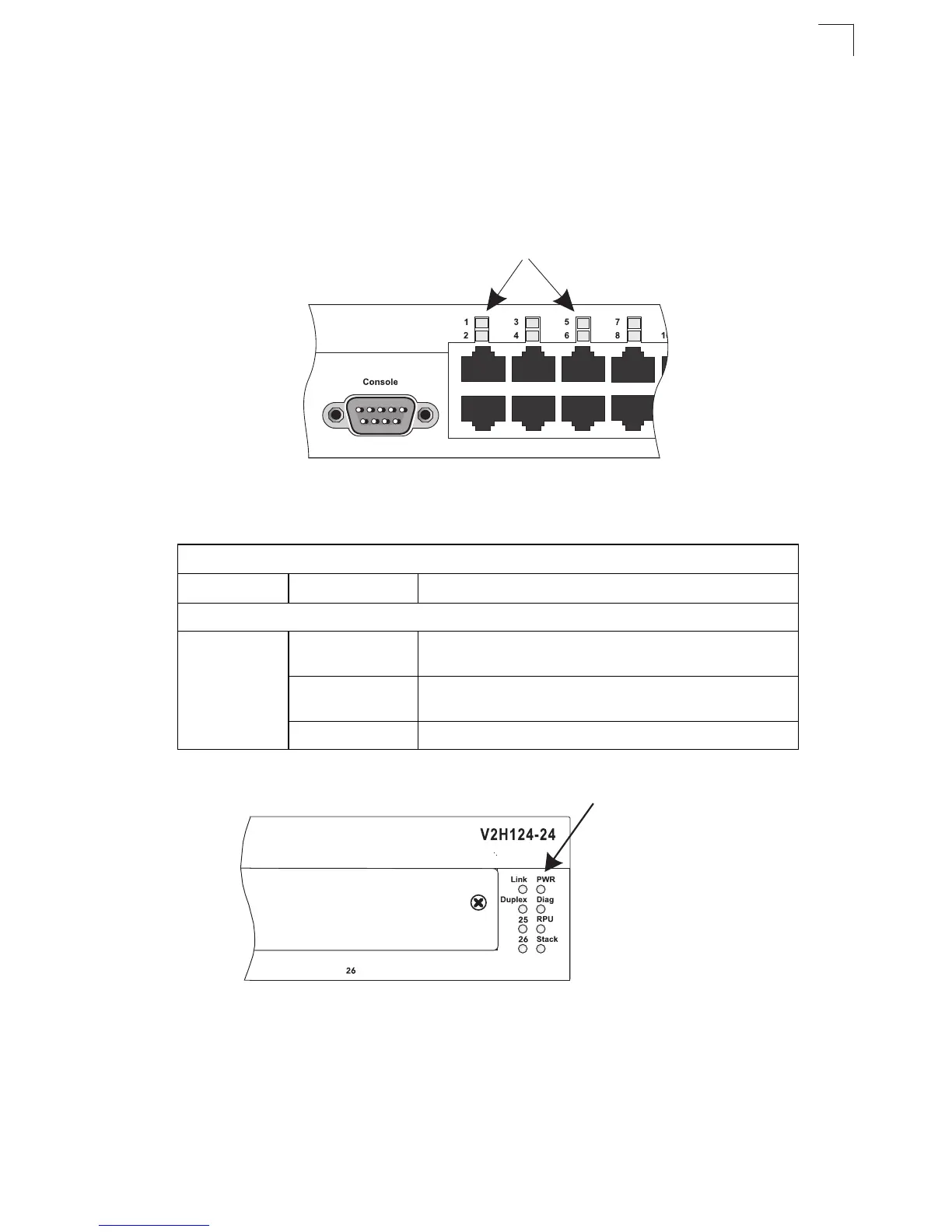

Port and System Status LEDs
The V2H124-24 base unit also includes a display panel for key system and port
indications that simplify installation and network troubleshooting. The LEDs, which
are located on the front panel for easy viewing, are shown below and described in
the following tables.
Figure 1-2. Port LEDs
Figure 1-3. System LEDs
Table 1-1. Port Status LEDs
LED Condition Status
Base Unit Ports
1~24
(Link/Activity)
On/Flashing
Amber
Port has established a valid 10 Mbps network connection.
Flashing indicates activity.
On/Flashing Green Port has established a valid 100 Mbps network connection.
Flashing indicates activity.
Off There is no valid link on the port.
Port Status LEDs
System Status LEDs
