enTourage eDGe - Inputs and Outputs

7
Inputs and Outputs

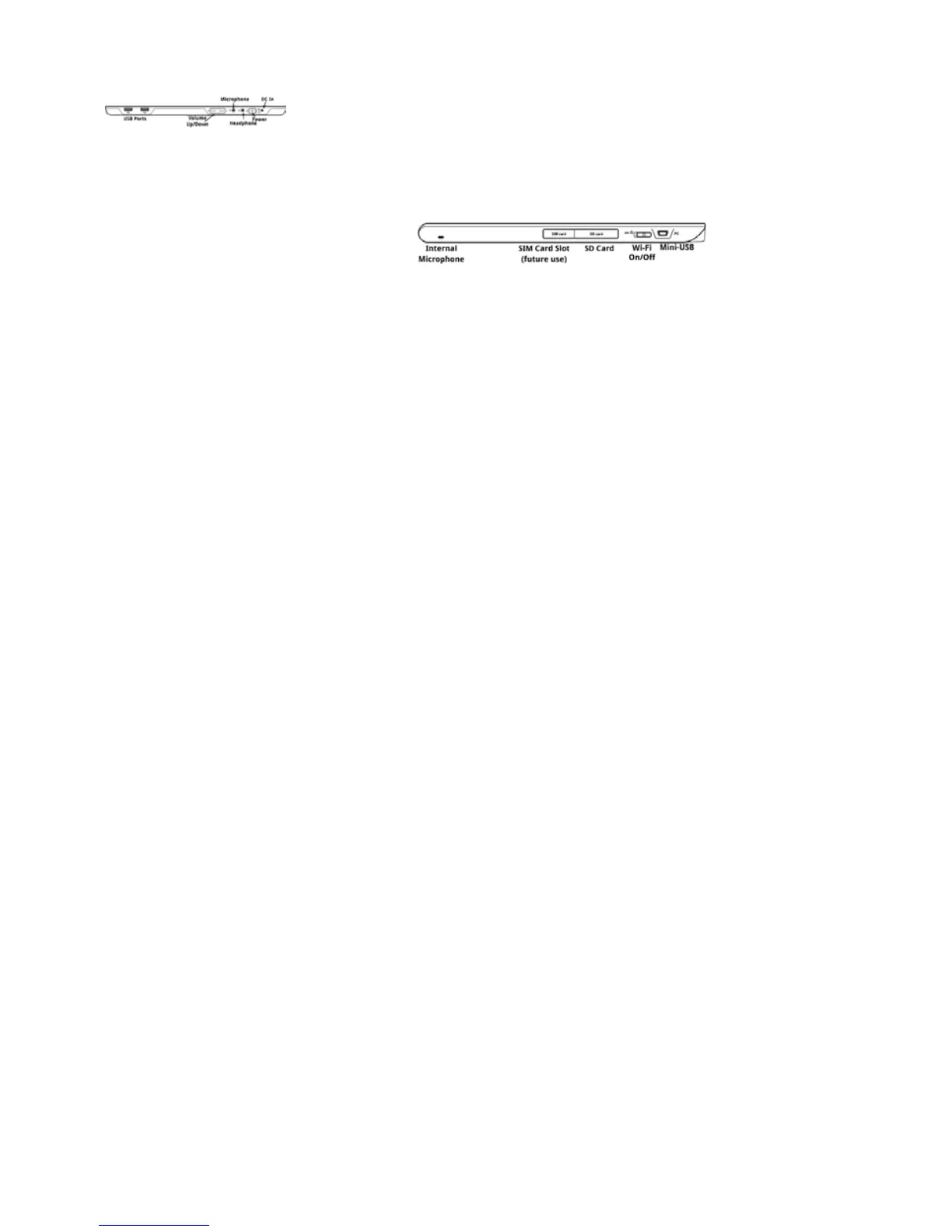

The image below shows the controls, inputs, and outputs on the side of the enTourage eDGe.
You can connect USB devices such as a keyboard or a USB-to-Ethernet adaptor into the USB ports. See Connecting to a
Network for details.
The headphone and microphone jacks are standard 3.5 mm inputs.
This image shows the top of the enTourage eDGe.
YoucanuseanSDcardtoaddmorestoragetotheenTourageeDGeorconnecttothemini-USBporttomovelesfroma
PC. For more details see SD Card and Moving Files with the Mini-USB Connector.
There is one opening for the internal microphone on the top of the unit and a second on the bottom next to the battery com-
partment.
Return to Contents
