Programme selectors
The door functions are set with different key programme selectors. The key must always be
removed on emergency escape doors after changing settings.
Programme selector functions
“Off” This function is only used on emergency escape doors after it is certain
that all people have left the building.
The door cannot be opened with inner and outer activation units. The
door is locked if an electromechanical locking device has been fitted.
The door can be opened with a key switch/emergency push-button (if
fitted).
“Exit” Passage from inside only. The door is normally locked if an electro-
mechanical locking device has been fitted. The door can only be
opened with the inner activation unit or with a key switch/emergency
push-button (if fitted).
“Auto” Two-way traffic, normal operation of the door. The door can be opened
with the inner and outer activation units and with a key switch/emer-
gency push-button (if fitted).
In this setting, two-way traffic is obtained.
“Auto
partial”
In this setting, two-way traffic “Auto partial” is obtained. The door can
be opened partially with the inner and outer activation units and with a
key switch (if fitted). With an emergency push-button the door opens
fully.
“Open” The door is permanently open. The door can be moved by hand e.g. for
window cleaning. All activation units except emergency push button
(if fitted) are disconnected.
“Reset” Set the programme selector to "Auto". Insert a narrow object in the
small hole on the programme selector and push. The operator makes a
system test of the battery (if selected), electro-mechanical lock, watch
dog relay and closed position. The operator is now reset and ready for
normal operation.
Note! The “Reset” is not available on the PS-5M.
“Reset” Turn the key clockwise to the position “R” (six o’clock) and back to
the requested setting. The operator makes a system test of the battery
(if selected), electro-mechanical lock, watch dog relay and closed posi-
tion. The operator is now reset and ready for normal operation.
Note! The key cannot be removed in this position.

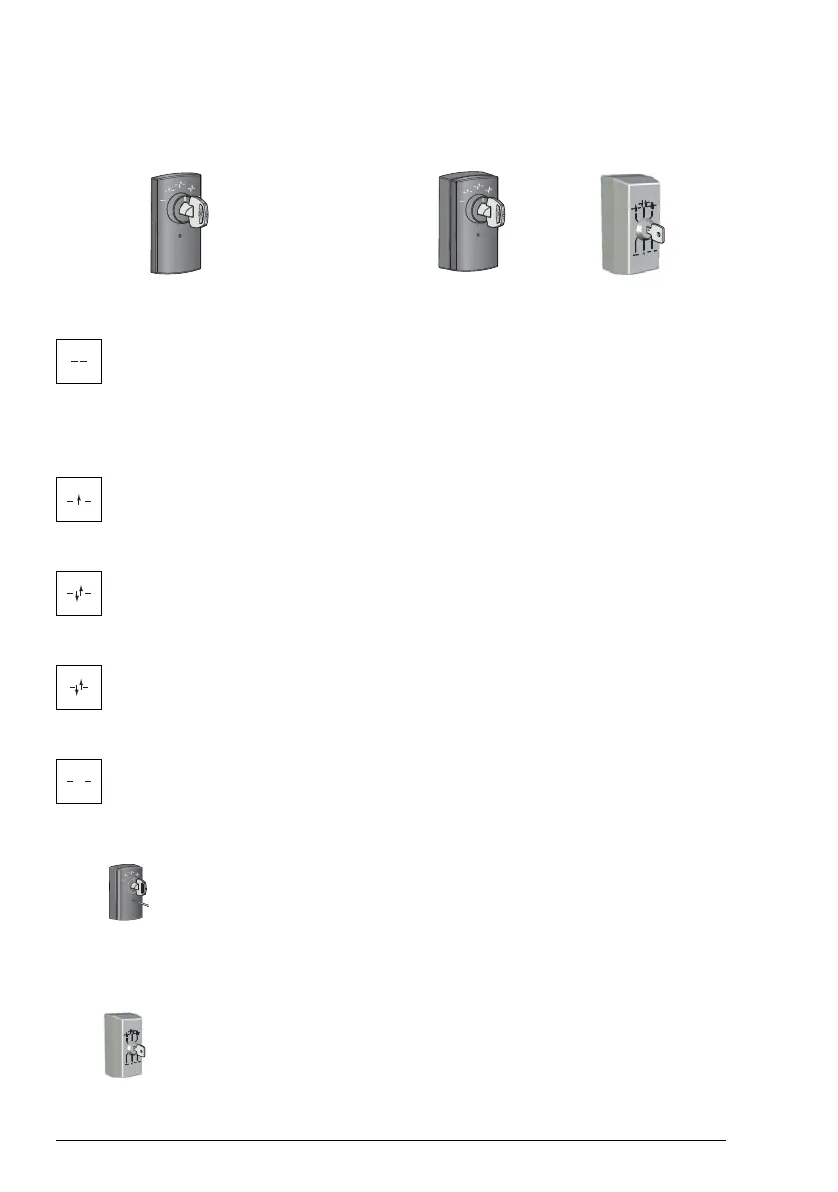

Flush mounted Surface mounted
