1005274-EMEI-2.0 Issue 2009-06-17 7
Technical data
Mains power supply: 120 V AC -10% to 240 V AC +10%, 50/60 Hz, fuse 10 AT
Power consumption: Max. 250 W
Integrated safety
To permit a safe passage between closing doors, the doors reverse immediately if an obstruc-
tion is detected. They then resume their interrupted movement at low speed to check whether
the obstruction has disappeared or not.
If an obstruction is detected between opening doors and surrounding walls or interior fittings,
the doors stop immediately, and then close after a time delay.
Emergency escape
The operator can be fitted with different emergency escape units to ensure a safe evacuation
of the building.

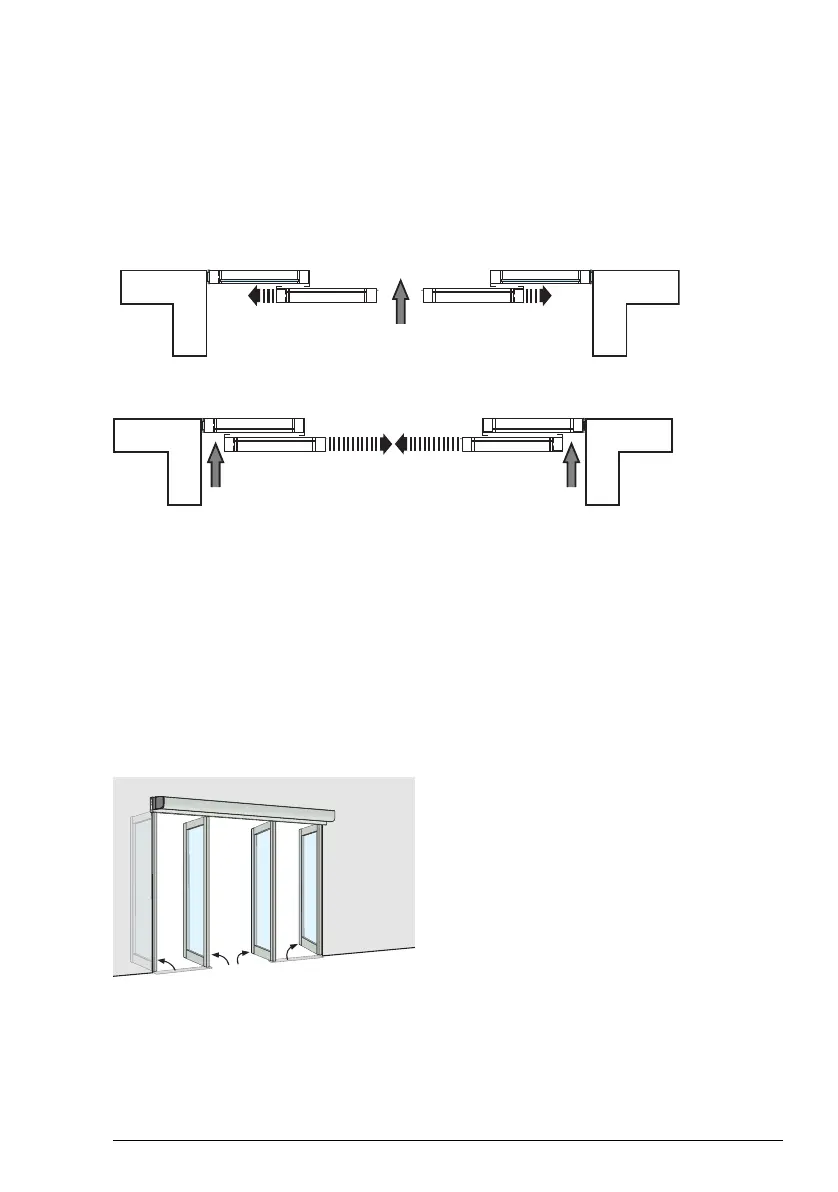

Break-out unit PSB
The door leaves and the side screens are swung outwards when a defined pressure is applied.
The break-out function can also be used to create a wider opening. From the fully swung out
position, the door leaves can be manually slid sideways offering the possibility to transport
wide objects through the opening, or to make a shop entrance more inviting during good
weather.
