ghghff6. Microinverter System Installation
Installing Envertech microinverter system involves several key steps. Each
step listed here is elaborated on the following pages.
Step 1. Verify voltage
Step 2. Mount microinverters onto the rack
Step 3. Ground the system
Step 4. Install a WiFi antenna
Step 5. Connect microinverter AC cables serially
Step 6. Fasten AC cables
Step 7. Connect to the grid
Step 8. Connect PV modules to microinverters
Step 9. Switch on the PV system
Step 10. WIFI Configuration
Step 11. Monitoring through EnverPortal
Step 1. Verify that grid voltage and PV panel voltage are matching with
microinverter rating

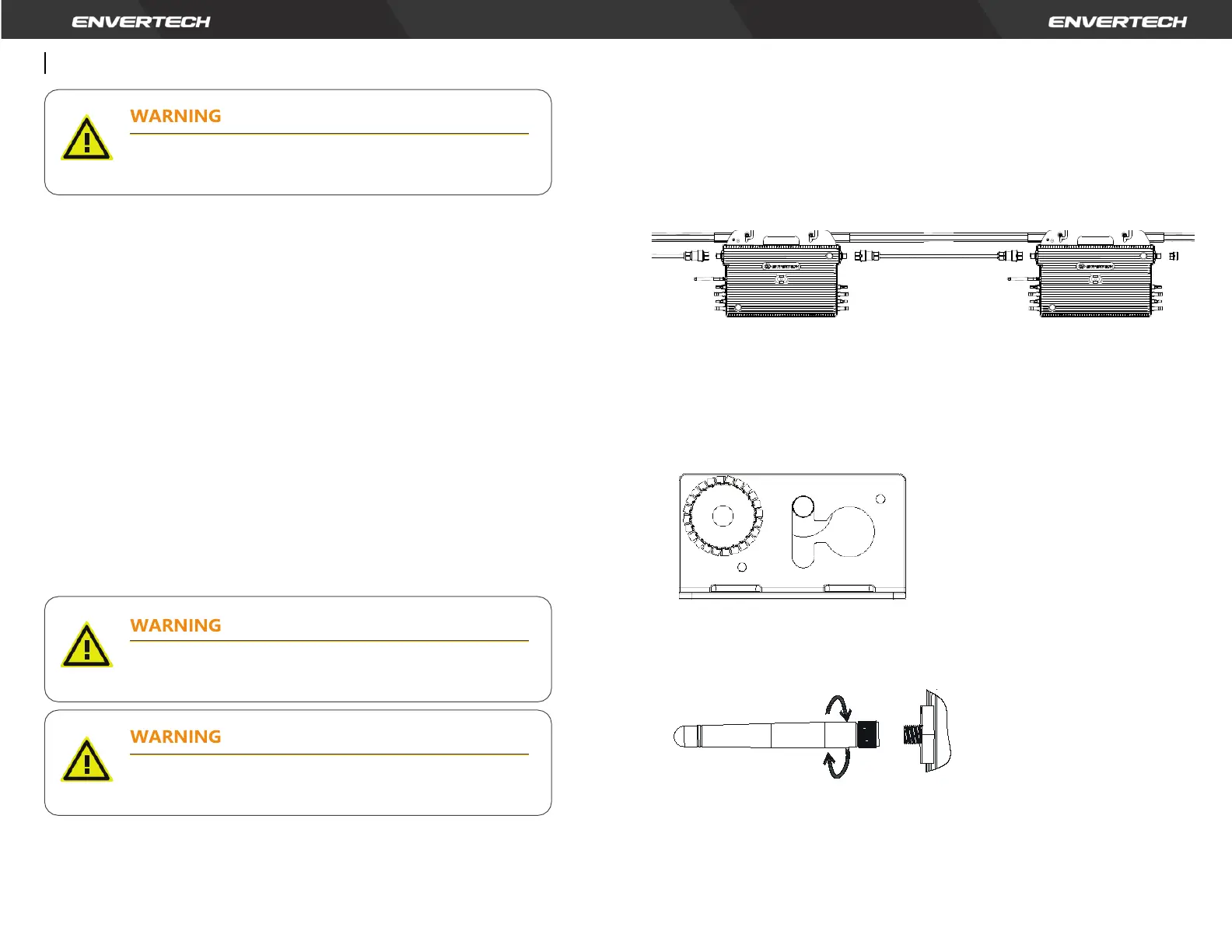

Step 2. Mount microinverters onto the rack
Mark out the estimated center of each PV module on the rack to facilitate
locating microinverters.
Mount all microinverters under modules to avoid rain and sun, with the
trademark facing downward.
Note: Please make sure that there are less than 2 units of EVT2000 in each
branch (12AWG).
Step 3. Ground the system
Microinverters and modules must be connected to the grounding conductor
in accordance with national standards. Fix the screws to the microinverter
installation hole. Make sure that the grounding screw thread is pierced into
the bracket to get the best grounding effect.
Step 4. Install a WiFi antenna
For better WiFi signal, rotate the antenna clockwise until it is firmly secured
to the EVT2000.
Step 5. Connect microinverter AC cables serially
Connect the AC connectors on both sides of the microinverters in a hand-in-
hand way.
Only qualified personnel may connect the Envertech
microinverter to the utility grid after receiving prior approval
from the electrical utility company.
You must install the microinverter system under connection
neither to the grid nor to the PV modules (or if not
disconnected, the modules should be shaded).
Installation could only be implemented when the system is
disconnected from the grid, and the solar panel has been
covered or disconnected.
