Envertech EVT2000 User Manual

7
S

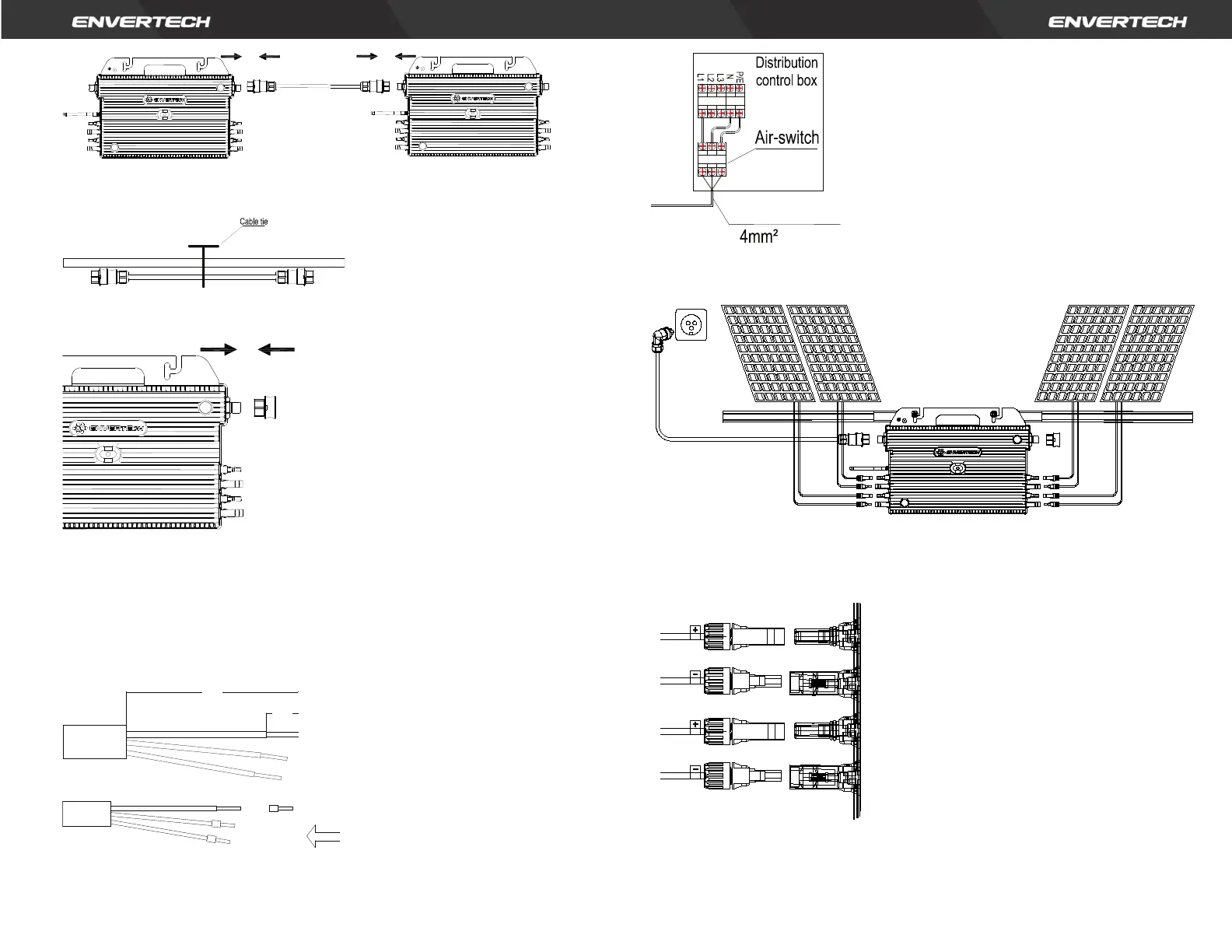

tep 6. Fasten AC cables and seal the unused connector
Fasten AC cables and grounding cables to the rack with cable ties.
I
nsert the end cap directly into the connector on the unused end, and check
if it is inserted in place.
S
tep 7. Connect to the grid
Option a. Connect to air switch
Remove the skin of the two ends of the ex-tension cable by y=40mm and
remove the skin of internal wires by x=14mm. Set the metal terminals onto
the open parts and clamp them to tighten the connection;
C
onnect the other side of the extension cable to the air switch.
O
ption b. Put the open parts of the extension cable into the plug and use
the plug to connect to the socket
S
tep 8. Connect PV modules to microinverters
Mount the PV modules on top of the microinverters; Connect each PV
module with the DC input cables of the microinverter.
S
tep 9. Switch on the PV system
Ensure all connection is completed and then turn on the air switch.
For the monitoring system (EnverBridge) installation please scan this
QR
Y=40mmR
Y=14mmR
Extension cable
