Component Maintenance Manual

12037 N Highway 99

Seminole, OK 74868

Phone (405) 382-0731

Fax (405) 382-0737

http://www.enviro-ok.com

ATA 21-00-23

Page | 56

Revision 10

June 1, 2017

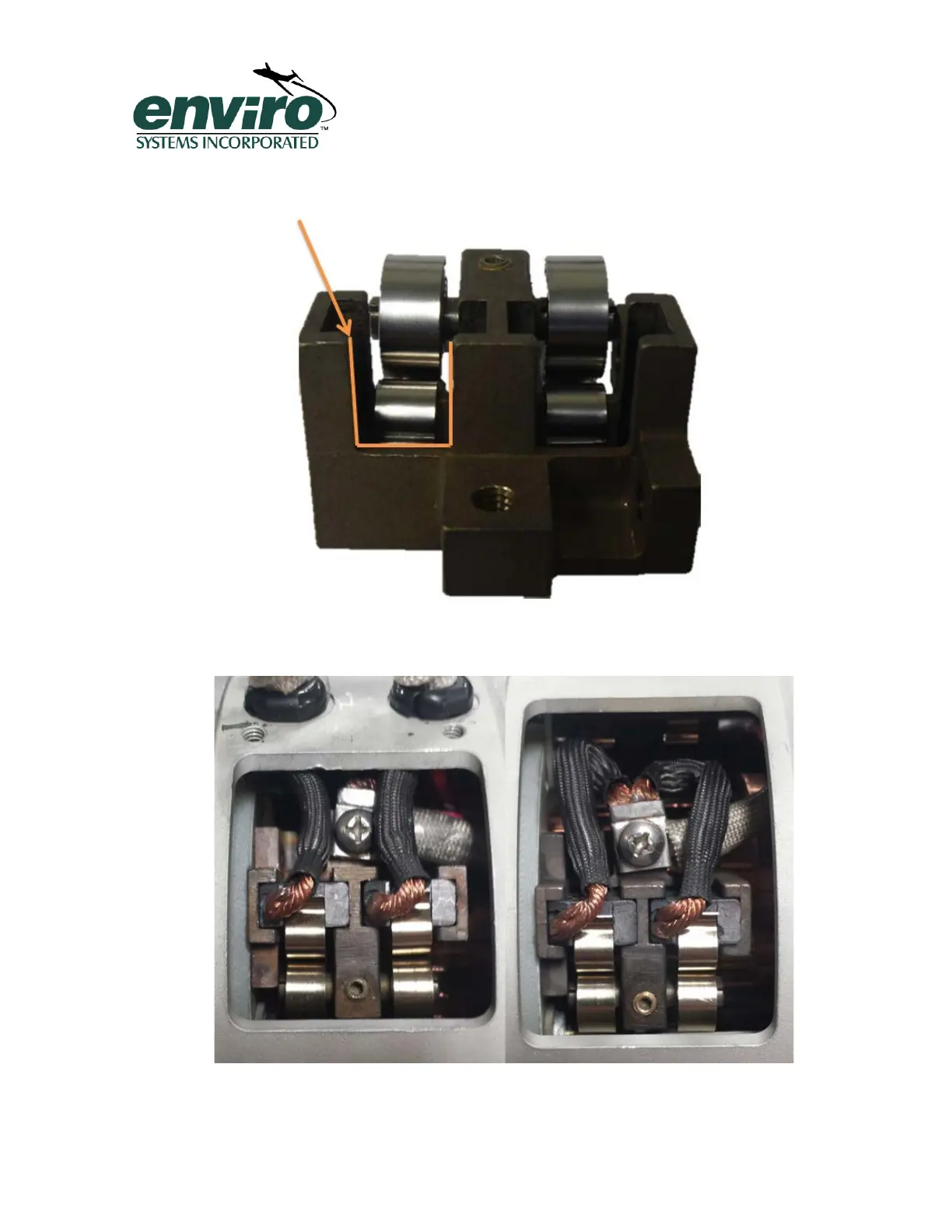

Note: The Brush Shunt Wires shall locate in the slot of the brush guide as shown above; this will

ensure the brush travel will not be inhibited by improper shunt wire routing. Proper shunt wire

routing for 2 brush locations shown below.
