31
Secondary Installation
optionaL base sheLf & RiseR:
The optional Base Shelf (1⅝” (41 mm) high) and Base Shelf Riser (2⅛” (54 mm) high) are components
that can be combined to create a riser with an overall height of 2
3
/16” (55 mm). This shelf can be installed
with or without the riser and can be used when the hearth in front of the unit is lower than the replace
opening. Additional Base Shelf Risers can be fastened together to increase the height in increments
of 2⅛” (54 mm). This Base Shelf may be used in conjunction with the any surround panel options
(excluding 4-sided), and it may also be used with the trimmable Surround. The Base Shelf and Riser are
sold separately.
Installation:
1. If unit is running, turn it off and
allow it to cool completely.
2. When using more than one riser
each level must be attached
using nine (9) #8 T-20 screws
provided (see Figure 36).
3. If installing with riser(s) the
Base Shelf is to be fastened
to the riser(s) with one T-20
screw at each end of the back
(see Figure 37).

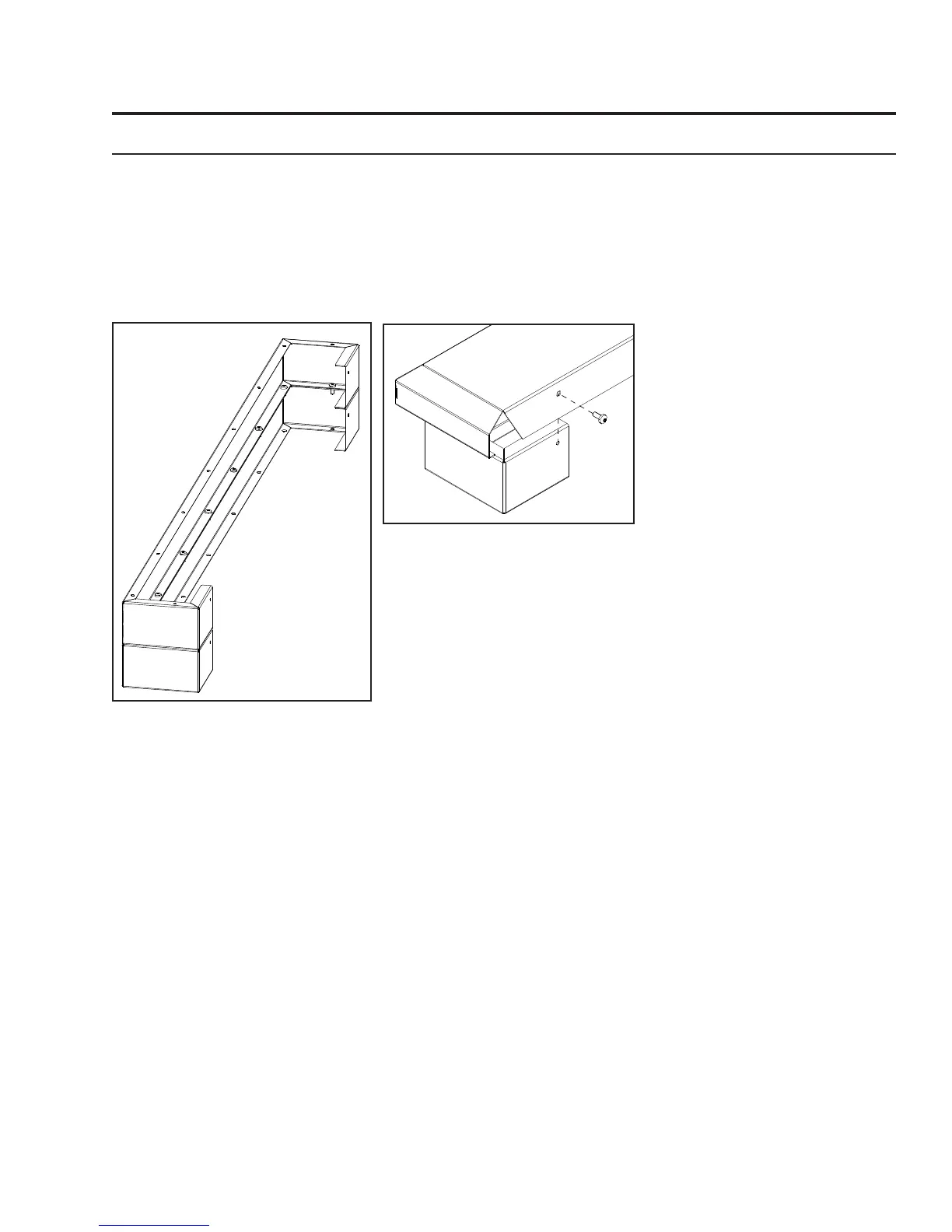

Figure 36: Combining 2 Base Shelf
Riser.
Figure 37: Installing Base Shelf
onto Riser.
4. The leveling legs may need to be adjusted to match the height of
the riser and shelf.
5. Center the Base Shelf assembly in front of the unit ush with the
bottom of the unit.
6. Install surround if required.
