Secondary Installation

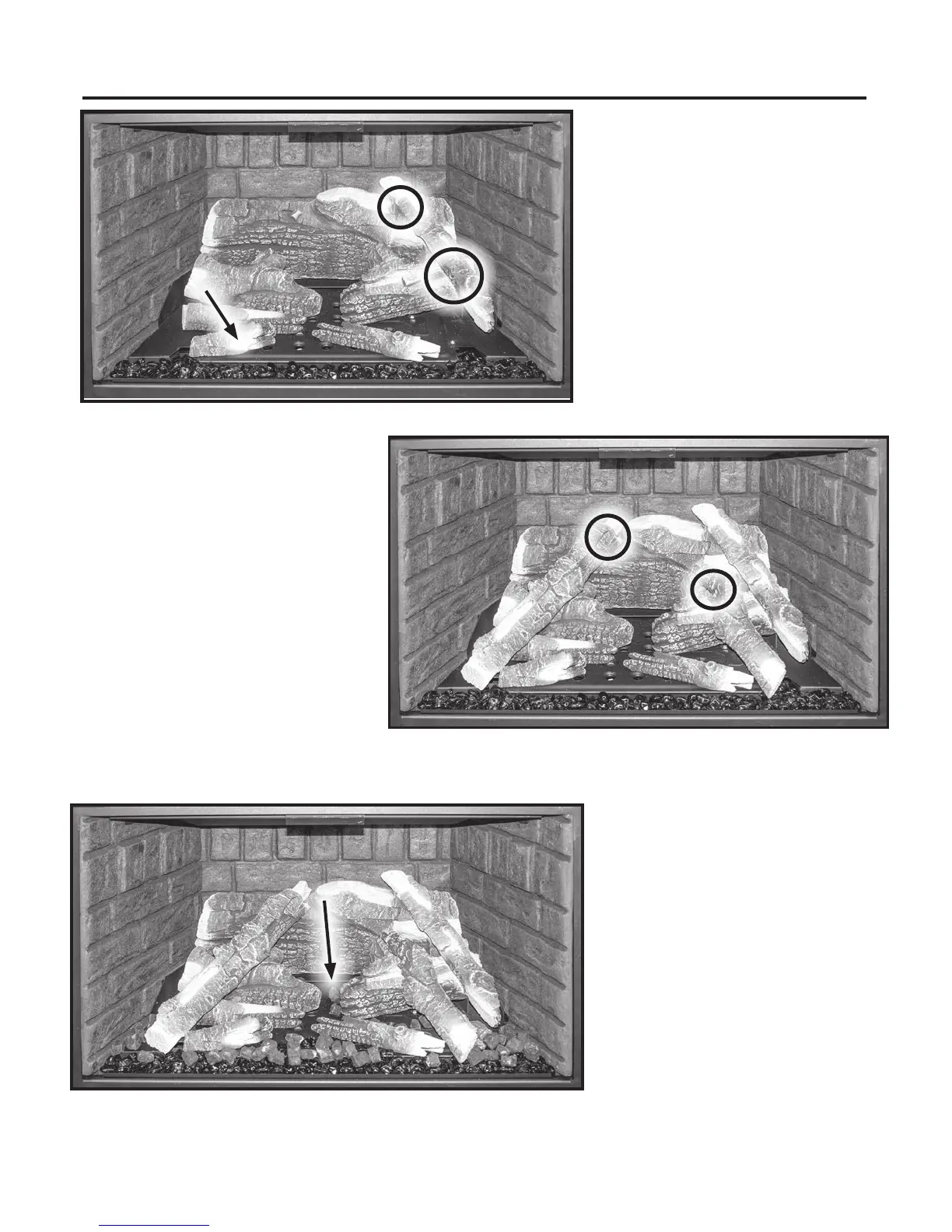

Figure 48. Final Ember Log & First Right Top Log.
5. Install the nal ember log, as shown
in Figure 48, by locating the drilled
holes on the burner pins. Then install
the rst right top log by sitting the
depression on the bottom side onto
the half-round on top of the back log.
The opposite end of the log sits into
the notch on top of the right ember
log.
Figure 49. Left and Second Right Top Logs.
Figure 50. Nuggets and Ember Wool.
6. Next, Install the left and second
right top log, as shown in Figure
49. Note the locating notches
on the bottom side of both
logs (areas highlighted). The
opposite ends will rest on the
ember tray as shown.
7. Finally, use the supplied ember
nuggets, wool, and remaining
glass media to decorate the burner
and ember tray as shown. Avoid
covering the burner ports and rear
air supply (highlighted) as this will
greatly affect the appearance of
the ame.
TIP: While the glass is still removed,
it is recommended that the gas line
be purged by lighting the pilot.
