10
AFTER INSTALLING THIS UNIT,
PLEASE PASS ONTO END USER
DO NOT THROW AWAY
BOOST

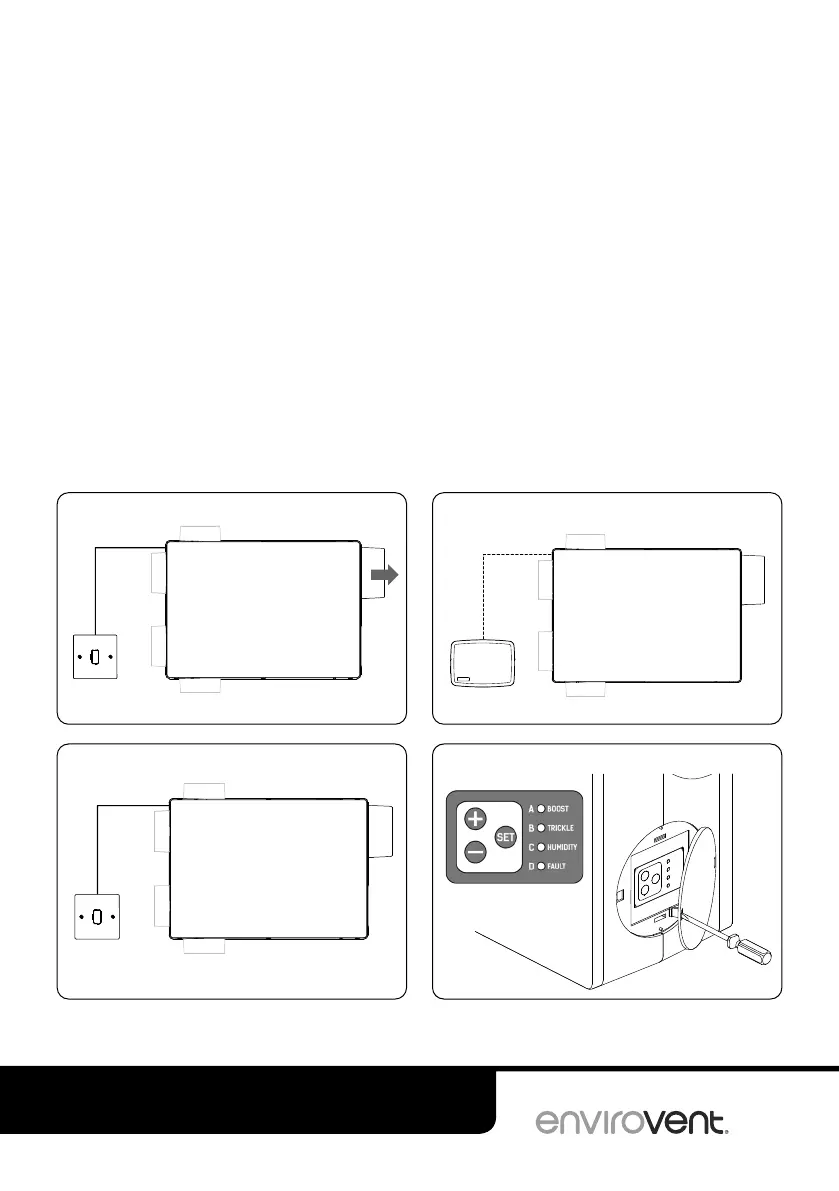

10. With the mains supply isolated, wire the unit to the local isolator following the wiring diagram
on page 2 and in accordance with the local wiring regulations. When the mains supply is
turned on, air will begin flowing through the system after a few seconds.
11. Wireless units can be connected to an AirSens intelligent IAQ sensor (optional extra) or other
0-10V control device to provide control over the fan speed. Connect it to the terminal block at
the end of the black cable labelled “0-10V control input” inside the unit. The cable should enter
the unit through the notch in the power cable entry slot. (See your chosen device instruction
guide for further wiring information).
12. Standard units can be connected to the included hardwired boost switch. Connect the switch
accessory to the black two core cable labelled “volt free input”
13. To commission the unit or change settings, unclip the control panel cap using a flat head
screwdriver. The keypad is located underneath the cap.
Extract 1
Extract 2
Extract 3
10.
12.
11.
13.
LOCAL
ISOLATOR
To Next Page
