24
EN
The minimum height of the sauna cabin must
be 1.90m on the inside.

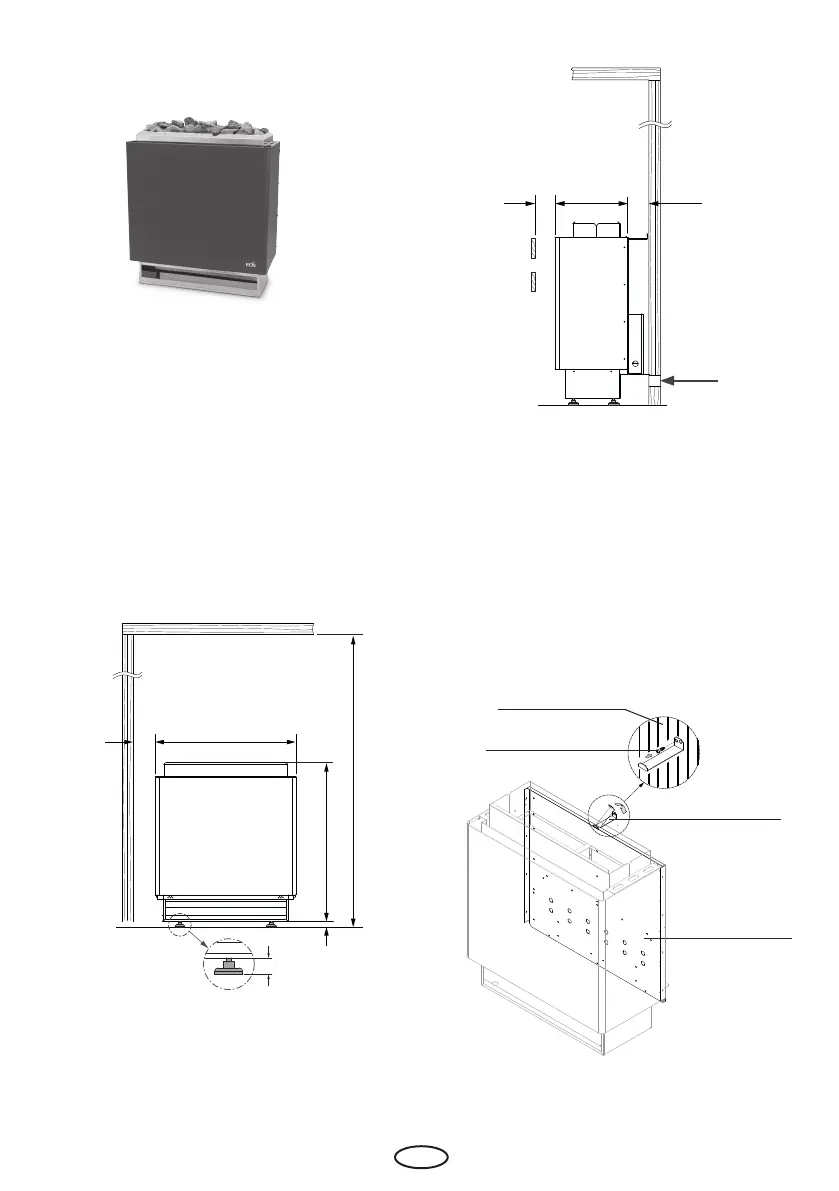

During the installation of the sauna oven, make
certain that the vertical distance between the
upper edge of the sauna heater and the sauna
ceiling is at least 90 cm, and that the horizontal
(lateral) distance between the heater and the
cabin wall is at least 8 cm.
Fig. 1
Montage
The sauna oven is intended only for a supply
voltage of 400 V 3 N AC.
The distance between the heater safety grid or
recliner bench and other ammable materials
and the heater must be at least 8 cm. The safety
grid height must be equal to the frontal heater
height (g. 2).
Mount the adjustable feet. In accordance with
required safety distances, center the heater in
front of the air intake vents. Align the adjustable
feet to any unevenness in the oor.
Insert angle bracket into the mounting slot on
the rear wall in accordance with the following
illustration and swing into horizontal position.
To this end, make certain the short side of the an-
gle bracket latches into the upper slot. Tighten
the brackets with the screws for particle board
which are provided.
Fig. 2
Fig. 3
Zuluft
63 cm
72 cm
2,5-3,5 cm
min. 190 cm
8 cm
25-35 mm
30 cm
72 cm
2,5-3,5 cm
min. 190 cm
8 cm
8 cm
When used for commercial purposes, the sauna
heater may only be used in combination with the
rocker switch Type II Art. No. 94.4424.
Mounting screw
Rear wall, sauna oven
Cabin wall
Angle bracket
