6. OPTIONS
6.1 ALARM & COMMUNICATION INTERFACE BOARD (OPS-01)
Alarm & Communication Interface Board provides the user RS232 / RS485 communication and dry
contact outputs.
A view of the Alarm & Communication Interface Board is given below.

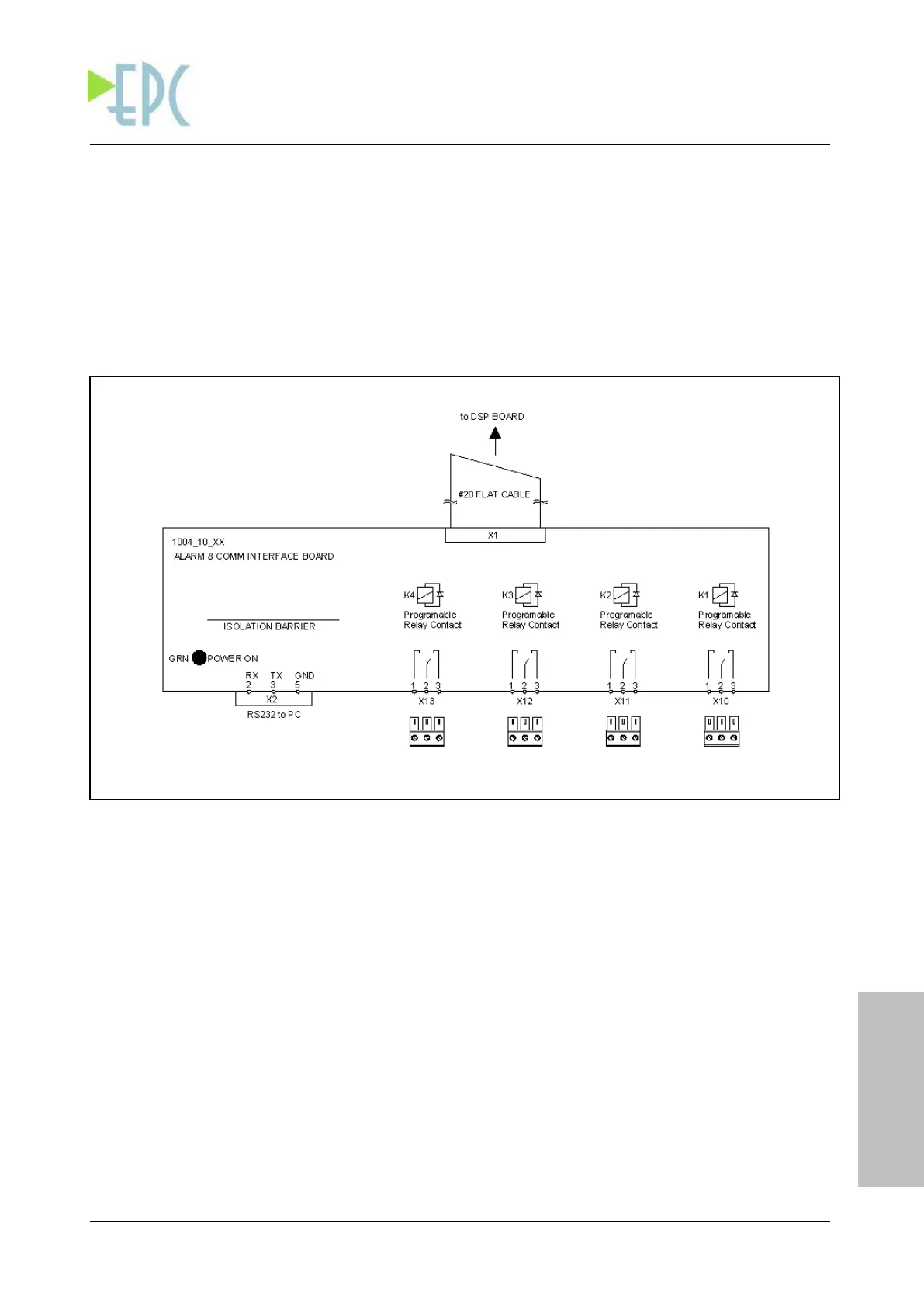

Figure 6.1 Alarm & Communication Interface Board
