Three Phase Output (DC to AC) Inverter
Users Manual
Ver1.2 PAGE :
6.3 GAUGES (OPS-03)
In this option, standart (72x72mm or 96x96mm) 1.5 % accurate gauges are provided for easy
observation of some operation measurements. These gauges or mounted on the front door of the
enclosure.
Depending on request, following values can be measured and observed :
AC Output Voltages (with 3 phase selective switch)
AC Output Currents (with 3 phase selective switch)
DC Input Voltage
DC Input Current

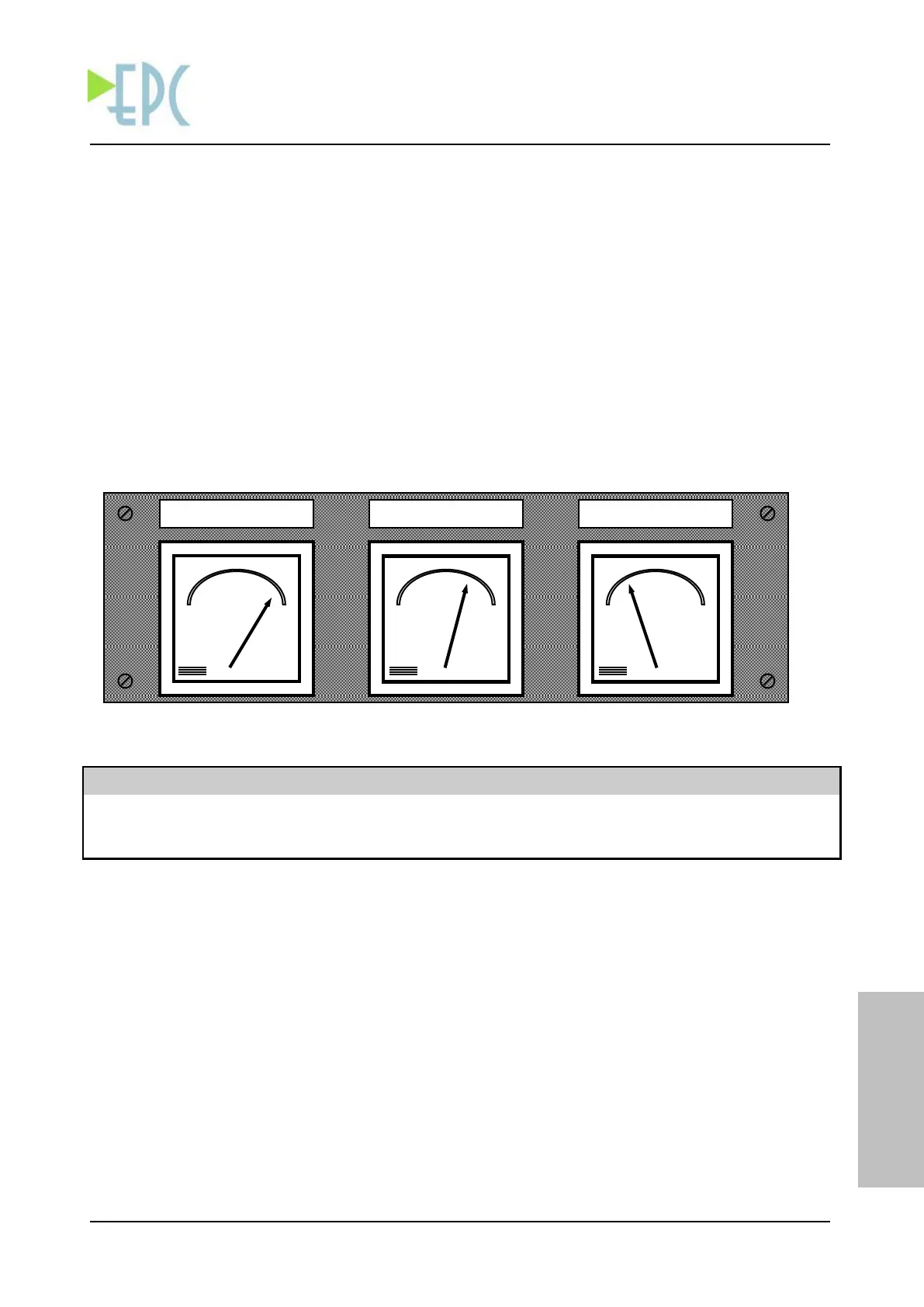

Figure 6.5 Gauges
NOTE
On equipments where gauges option is applied, LCD panel and keypad is not removed and remain
functional.
6.4 CABINET TEMPERATURE MEASUREMENT (OPS-04)
This option provides cabinet temperature measurement using a comletely digital temperature
sensor. Because the temperature sensor used is a digital sensor and has 12 bits resolution, no
calibration is needed. In this option, the temperature sensor is placed near to the electronic boards.
