Epever UP1000 - Designations of Models

3
❶
Ventilation
❼
Dry contact interface
❷
M4 Screw (2 pcs)
❽
Remote interface
❸
AC output terminals
❾
RS485 interface(5VDC/200mA)
❹
Utility input terminals
❿
Inverter/charger switch
❺
Battery input terminals
⓫
PV input terminals
❻
RTS
★
interface
⓬
Terminals cover
（Model:RT-MF58R47K3.81A）
★ Connect the temperature sensor, the inverter/charger is compensated according to the
ambient temperature.

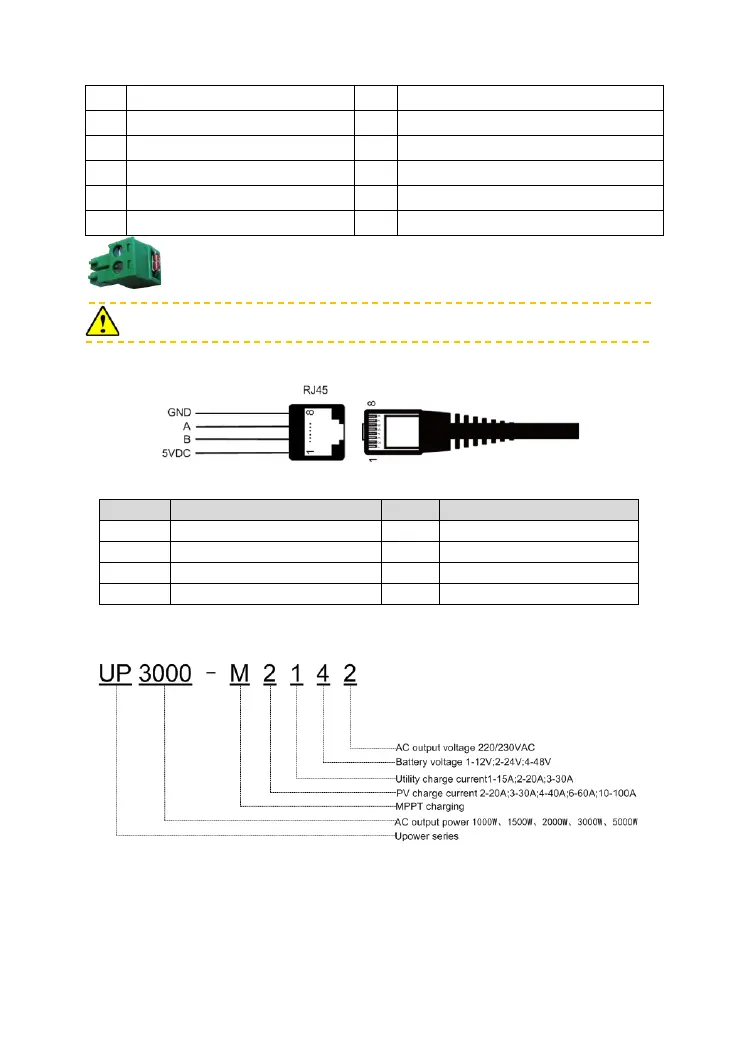

 RS485 Interface
RJ45 interface pin define is shown below：
Pins
Define
Pins
Define
1
5VDC
5
RS-485-A
2
5VDC
6
RS-485-A
3
RS-485-B
7
GND
4
RS-485-B
8
GND
1.3 Designations of models
Temperature Sensor
