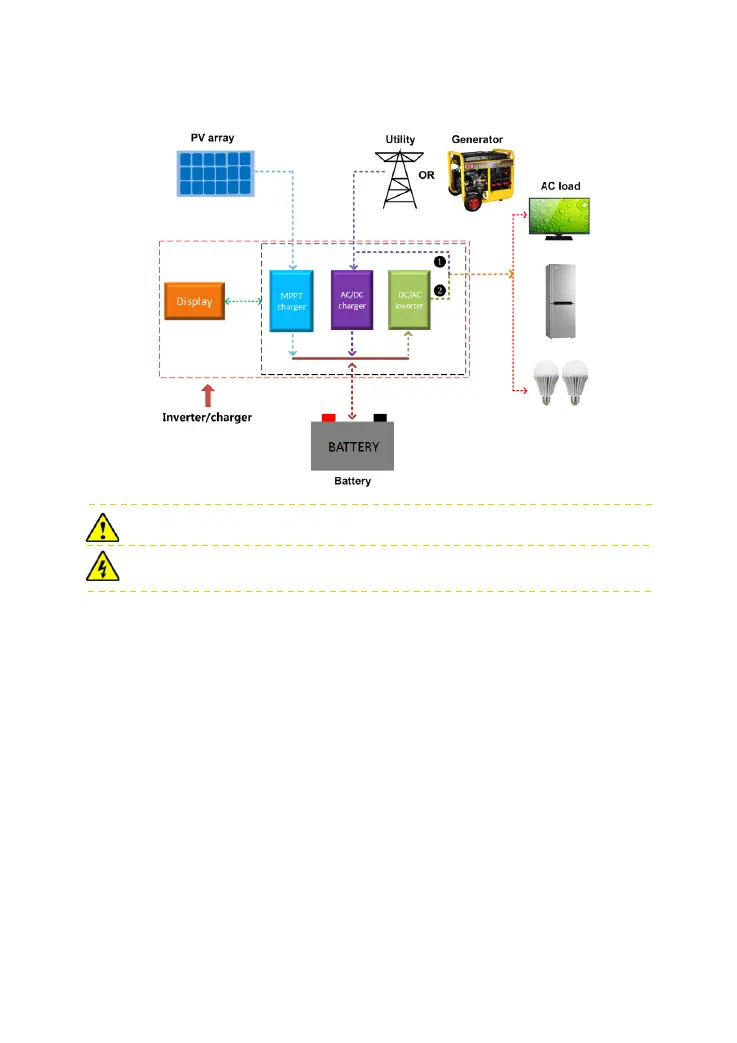

1.4 Schematic Diagram for Connections
Utility power supply and Battery power supply can not be carried out simultaneously.
Confirm the AC load power compatible with the power of the inverter/charger. AC load
selected exceeding the maximum output power of the inverter/charger is prohibited.
