Cleaning the Mirror

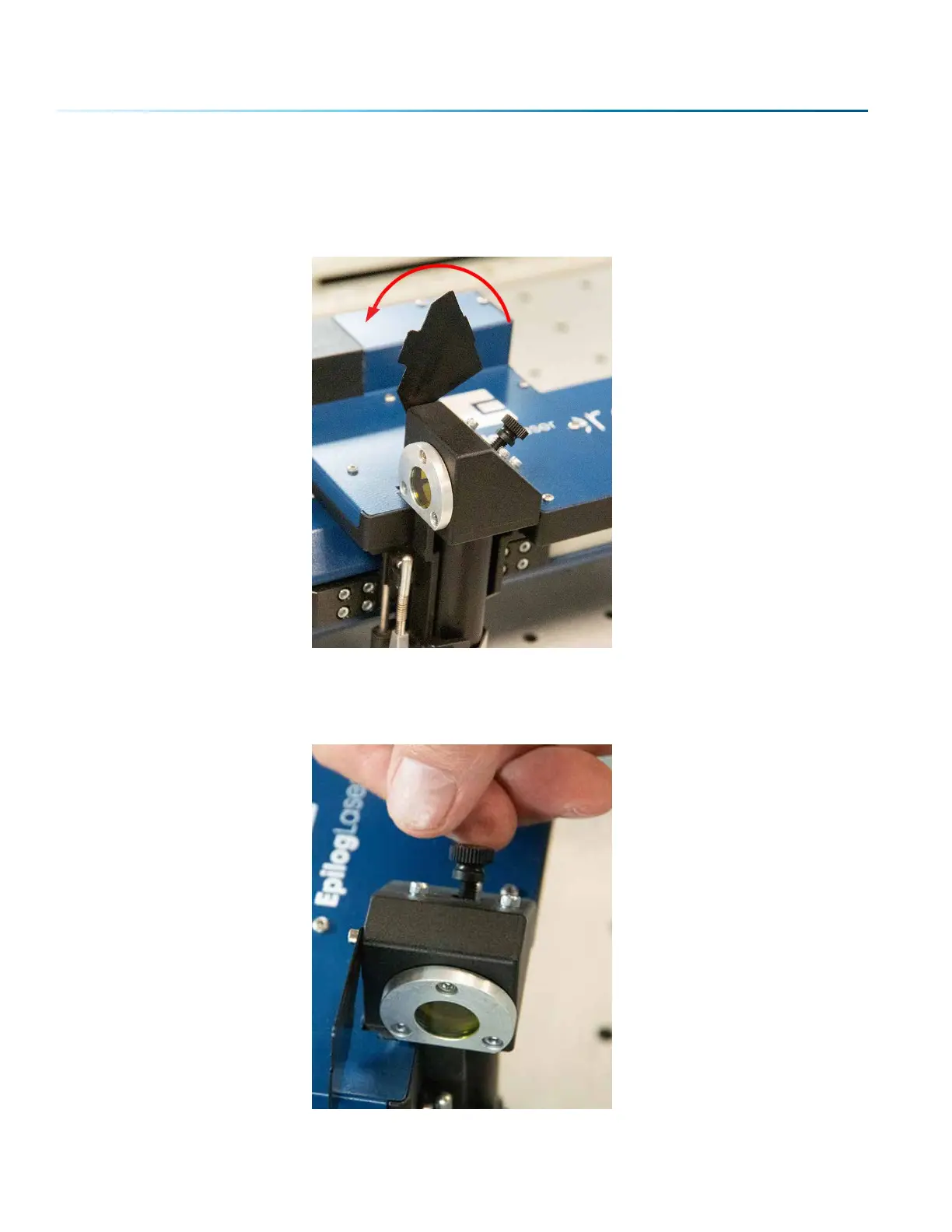

The mirror is located on the back side of the assembly and also has a simple cleaning process. Start by
opening the door latched onto the back of the assembly. The door will rotate counterclockwise to open.
Next, twist the knob on the right side of the assembly counterclockwise to loosen the mirror, preparing it
for removal.
