Epiroc BQ3-DTH - Page 21

21

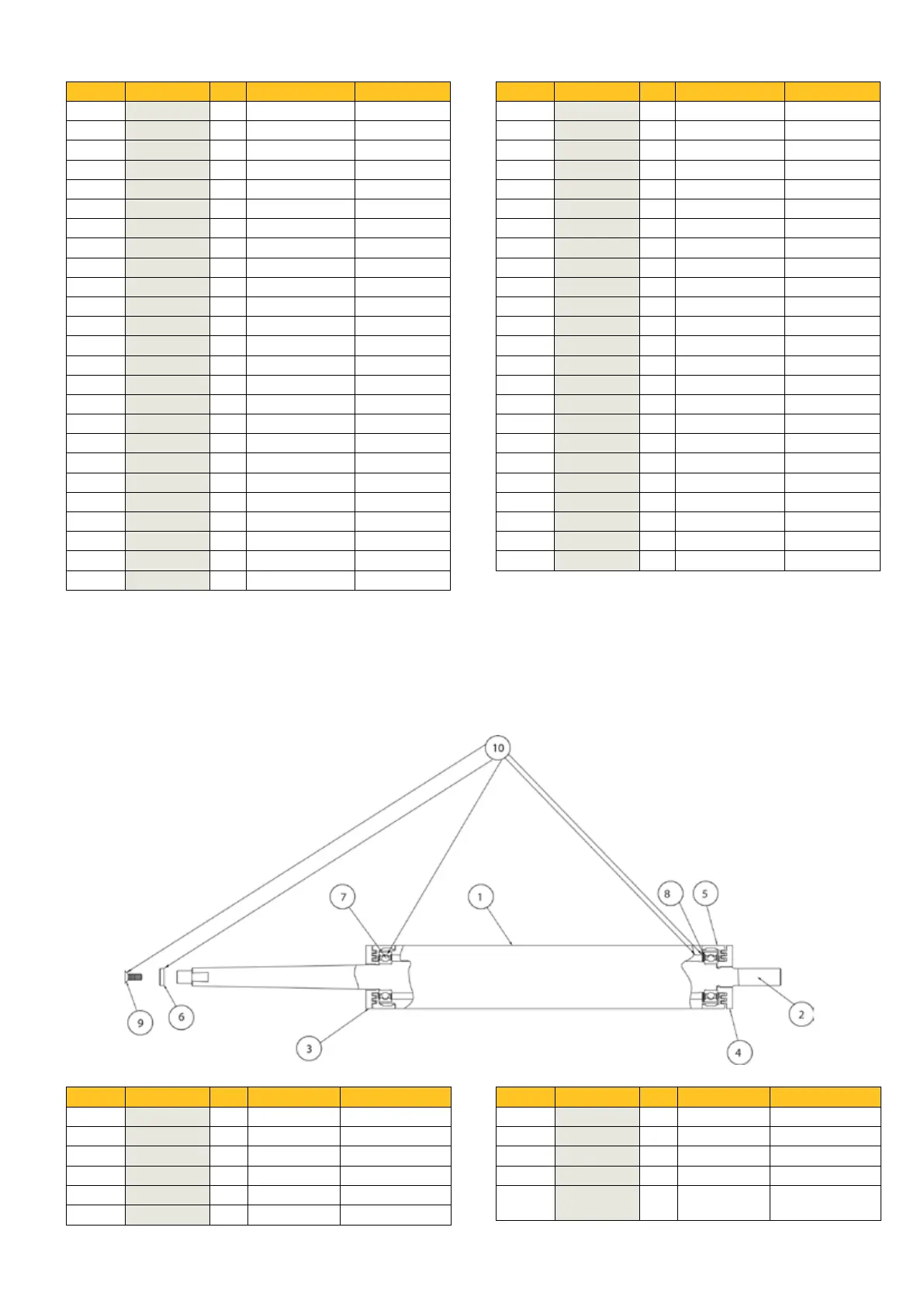

Grinding spindle
Ref� No� Product No� Qty Description Specification
1 87003848 1 Housing
2 87004042 1 Solid spindle
3 87000780 1 Nut CW
4 87000781 1 Nut CCW
5 87000782 2 Nut Inner
6 87000787 1 Washer
Ref� No� Product No� Qty Description Specification
7 87000858 2 Ball bearing
8 87001081 2 Spring
9 87000453 1 Screw 6 X 16
10 87004729 1 Spare kit Ref. 6-9
87004045 1
Grinding
spindle
Complete Ref.
1-9
Ref� No� Product No� Qty Description Specification
1 87003421 1 Coolant tank
2 87003780 1 Bracket
3 87001270 1 Valve
4 87004651 1 Bracket
5 87004652 1 Pipe 1/2"
6 87004653 1 Spacer
7 87001819 1 Hose Clamp 13/20
8 87004662 1 T-pipe 1/4"
9 87004565 1 Water filter 25 micron
10 87004588 1 Filter cup Complete
11 87001886 1 Bushing 1/2"-1/4"
12 87000022 1 Bushing 3/4"-1/2"
13 87001850 2 Bushing 3/8"-1/4"
14 87000066 5 Nipple 1/2"
15 87000263 1 Nipple 3/8"
16 87004665 1 Strainer
17 87001855 1 Coupling 8-¼"
18 87000849 5 Elbow 8-¼"
19 87001271 1 Nut G
3/8"
20 87004657 2 Angle 1"
21 87004583 4 Bushing
22 87004658 1 Angle 1/2"
23 87000016 2 Angle 1/2"
24 87003514 1 Angle 1/2"
25 87000017 1 Angle
Ref� No� Product No� Qty Description Specification
26 87000019 1 T-pipe 1/2"-1/4"
27 87004585 3 Hose L = 2000
28 87000021 2 Nipple 1/2"
29 87004655 1 Nipple 1/2"
30 87003700 1 Nipple 1/2"-3/8"
31 87004566 1 O-ring 89x5.3
32 87000788 2 Washer BRB 6.4
33 87000430 1 Washer BRB 13
34 87003604 1 Electric valve
35 87004664 1 Nut 1/4"
36 87004663 1 Nozzle holder 1/4"
37 87001724 1 Washer
13
/
17
Copper
38 87004661 2 Washer 20x24 Copper
39 87004659 1 Filter wrench
40 87004654 1 Valve 3/4"
41 87004764 1 Pump unit, 3-p
42 87001885 2 Screw 6x12
43 87004634 2 Screw 5x12
44 87004063 3 Hose Ø8, L = 2100
45 87004656 1 Hose Ø12, L = 1000
46 87003677 1 Hose Ø25, L = 1500
47 87003516 1 Nut 1/2"
48 87004666 1 Nozzle
49 87004667 1 Gauge pressure Ø63
