Epiroc BQ3-DTH - Controls and Other Parts

5

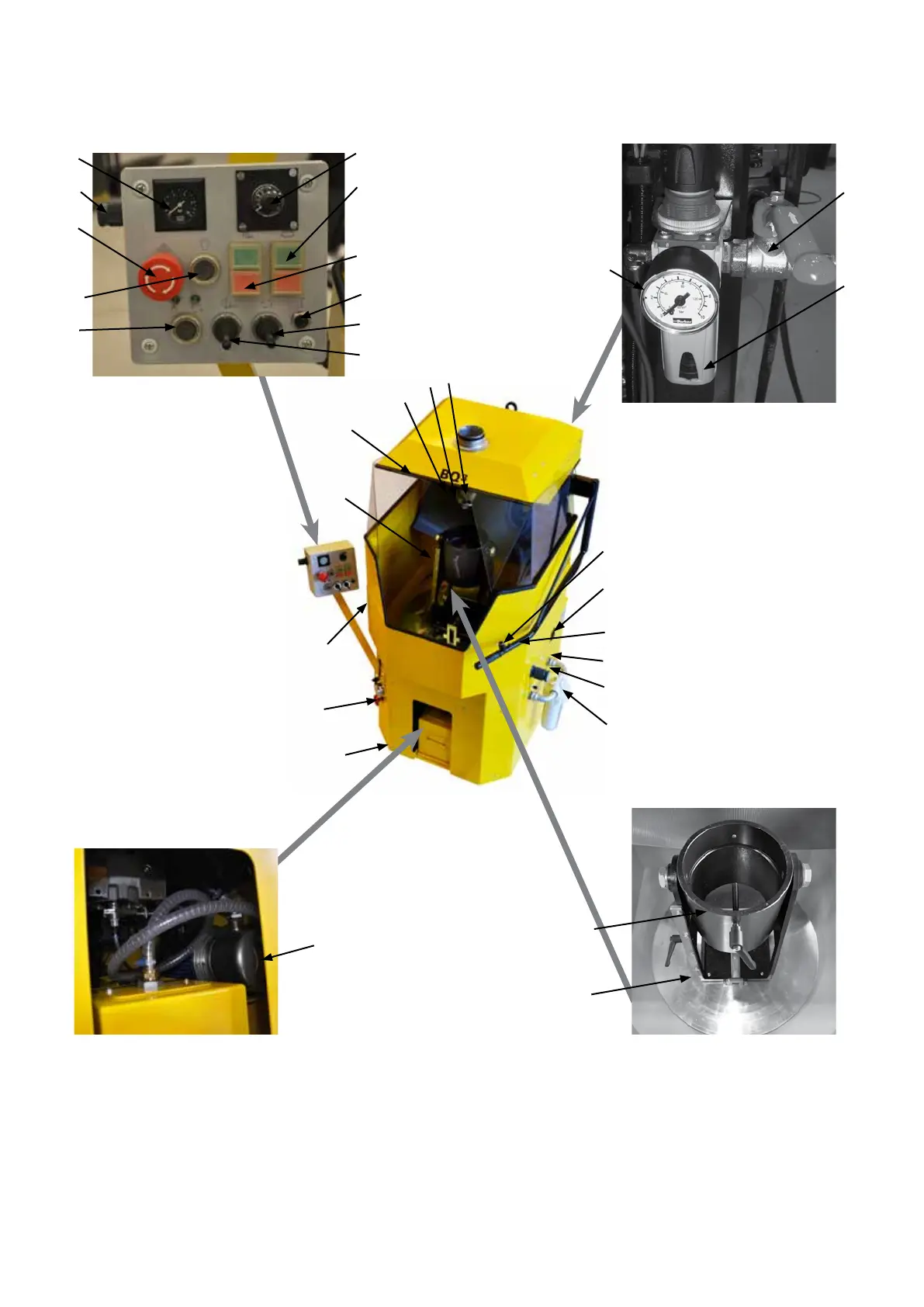

Controls and other parts
16
17
18
19
20
21
22
23
24
25
29
1 Feed-pressure gauge
2 Potentiometer
3 Table rotation and
coolant pump
4 Grinding spindle
5 Manual / Automatic (mode A-B)
6 Feed movement, manual
7 Feed movement, automatic
8 Feed-pressure regulator
9 Emergency STOP
10 Work lights
11 Stroke limiter
12 Coolant pump
13 Filter/regulator
14 Pressure gauge
15 ON/OFF valve for air
16 Coolant nozzle
17 Centring arm
18 Diamond grinding wheel
19 Grinding spindle
20 Main holder
21 Centring button
22 Feed lever
23 Reset button
24 Machine feet
25 Coolant valve
26 Return-pressure gauge
27 Return-pressure regulator
28 Vacuum valve
29 Water filter
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
30
31
30 Bit holder
31 Grinding disc
26
27
28
