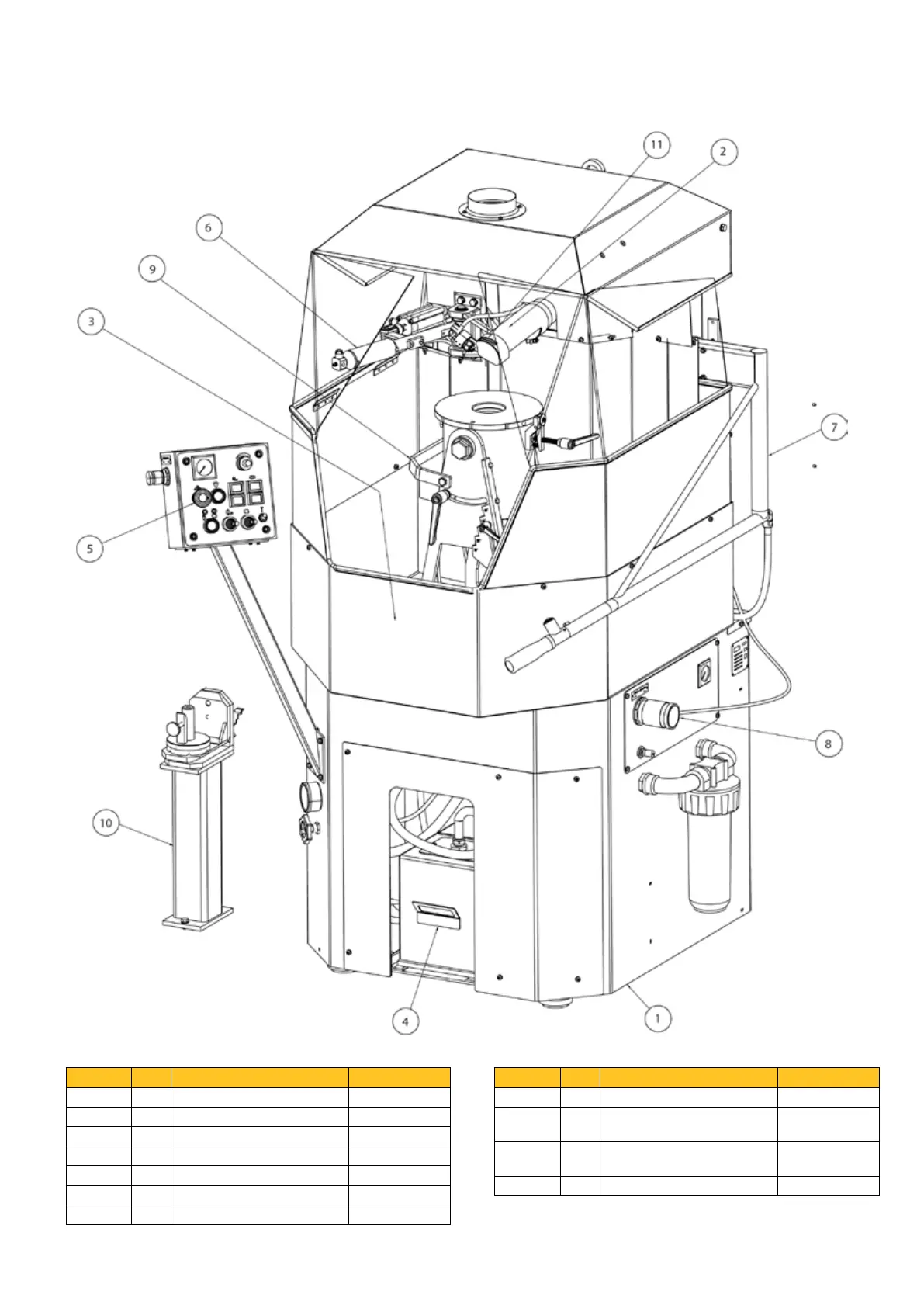

Spare parts
Ref� No� Qty Description See page
1 1 Frame, body Page 14
2 1 Grinding unit Page 15
3 1 Rotating table Page 17
4 1 Flushing components Page 20
5 1 Electrical components Page 22
6 1 Centering device Page 16
7 1 Lifting arm Page 18
Ref� No� Qty Description See page
8 1 Pneumatic components Page 24
9 1
Bit holder for DTH and CO-
PROD bits
Page 19
10 1
Option bit holder for
threaded bits
Page 30
11 1 Grinding spindle Page 21
