14

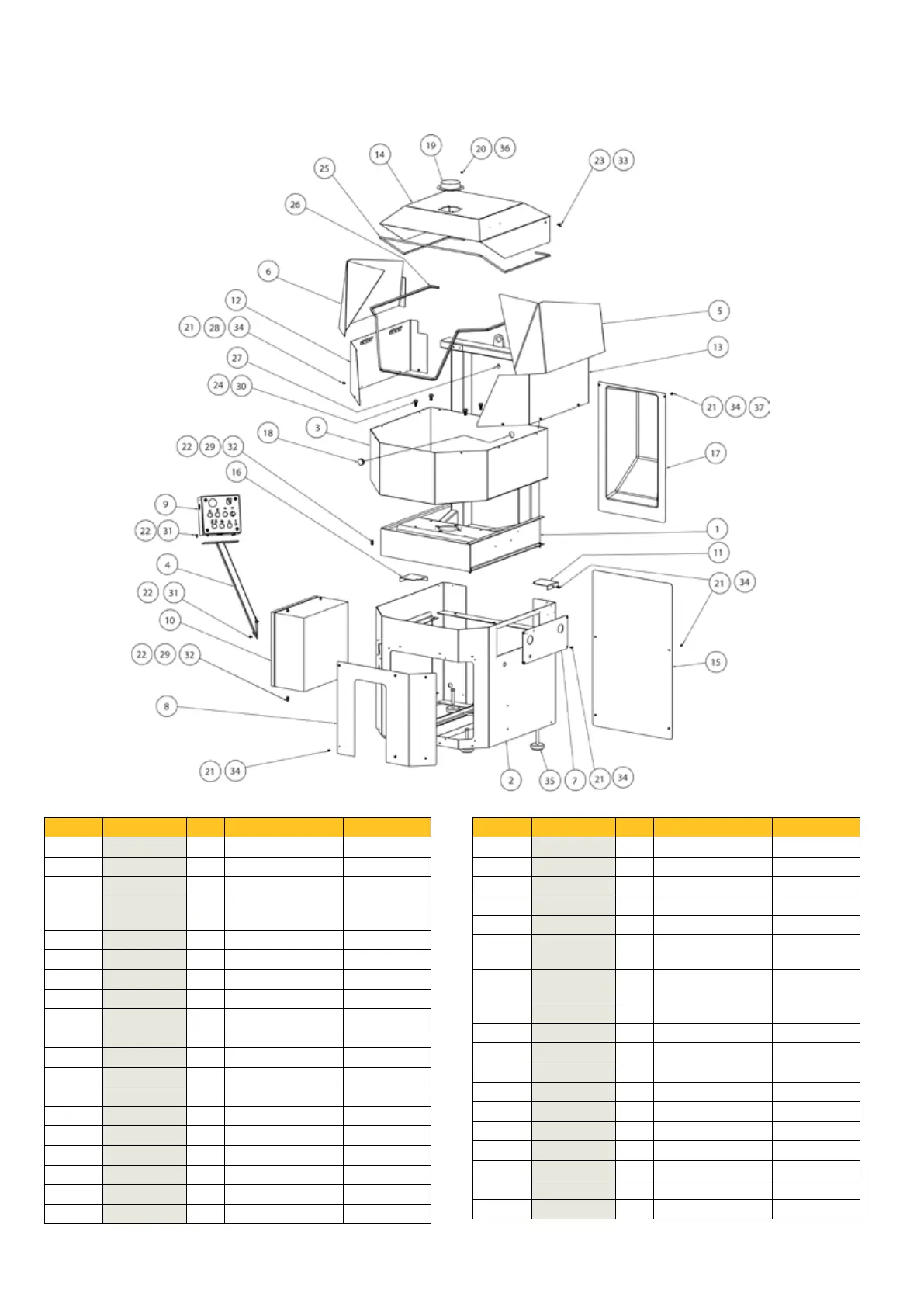

Ref� No� Product No� Qty Description Specification
1 87003833 1 Stand upper
2 87003834 1 Stand lower
3 87003857 1 Collect tray
4 87003869 1
Bracket control
panel
5 87003896 1 Splash guard Right
6 87003897 1 Splash guard Left
7 87004632 1 Cover pneumatics
8 87004735 1 Front door
9 87003433 1 Control box
10 87003443 1 Electric cabinet
11 87003859 1 Bracket Right
12 87003866 1 Cover Left
13 87003867 1 Cover Right
14 87003868 1 Protection hood
15 87003856 1 Rear cover
16 87003860 1 Bracket Left
17 87003870 1 Rear cover
18 87004759 1 Rubber grommet Ø 30
19 87004633 1 Ventilator frame Bdec 1010
Ref� No� Product No� Qty Description Specification
20 87000946 4 Washer BRB 4.3
21 87000503 36 Washer BRB 5.3
22 87000788 24 Washer BRB 6.4
23 87000131 4 Washer BRB 8.4
24 87000430 4 Washer BRB 13
25 87003420 1
Rubber sealing
strip
L = 2300
26 87003420 1
Rubber sealing
strip
L = 2600
27 87003438 1 Rubber stop M6
28 87000504 8 Nut M5
29 87000838 8 Nut M6
30 87000377 4 Screw 12x25
31 87001885 8 Screw 6x12
32 87000145 8 Screw 6x20
33 87000926 4 Screw 8x16
34 87004634 28 Screw 5 X 12
35 87002417 4 Damper Feets
36 87001901 4 Pop rivet 4x10
37 87004732 2 Washer
Frame, body components
