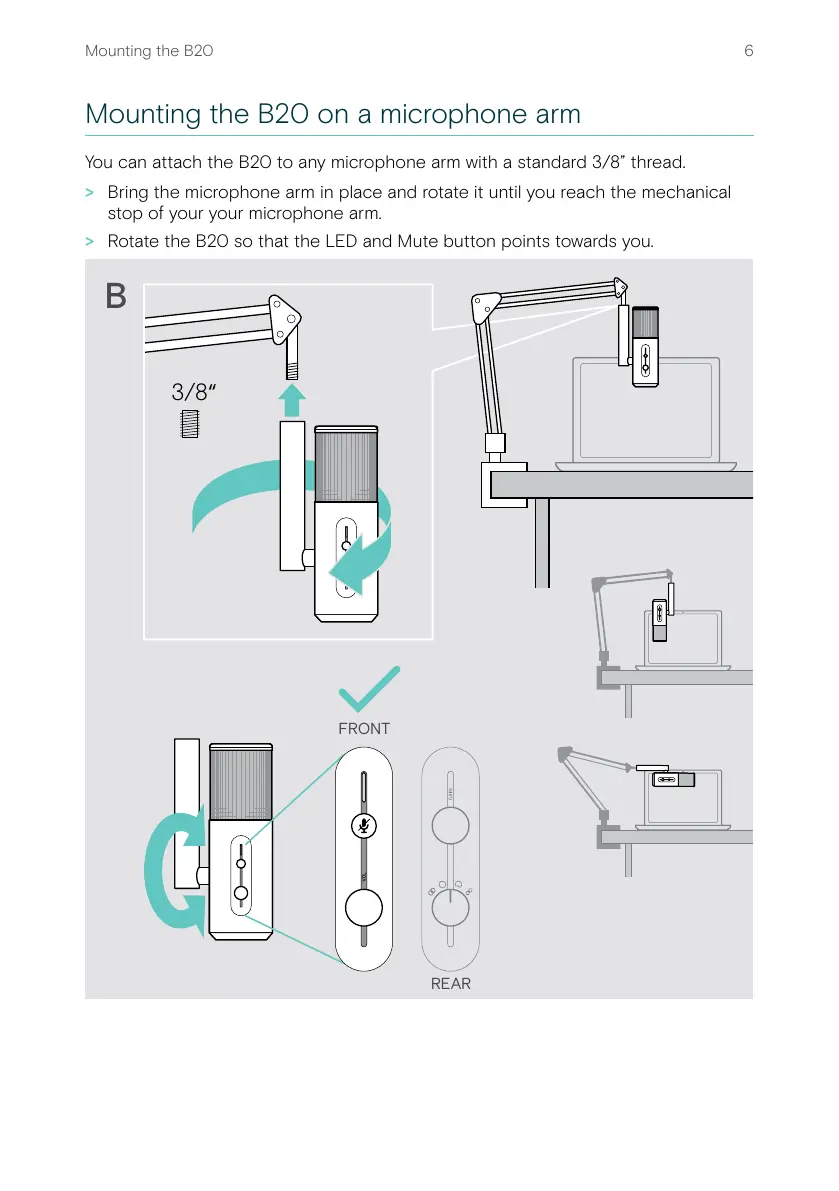

6Mounting the B20
Mounting the B20 on a microphone arm
You can attach the B20 to any microphone arm with a standard 3/8” thread�
> Bring the microphone arm in place and rotate it until you reach the mechanical
stop of your your microphone arm�
> Rotate the B20 so that the LED and Mute button points towards you�
3/8“
B
FRONT
REAR

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the EPOS B20 and is the answer not in the manual?

EPOS B20 Specifications

General IconGeneral
Microphone TypeCondenser
Polar PatternsCardioid, Omnidirectional, Bidirectional, Stereo
Frequency Response20 Hz - 20 kHz
ConnectivityUSB-C
Sample Rate48 kHz
Bit Depth24-bit
Headphone Jack3.5mm
ControlsMute button
