4. Peripherals Installation
The MSR and VFD customer display are tested and can be supplied at your
request. The MSR and VFD customer display are packed separately for
transportation and can be installed by the user.

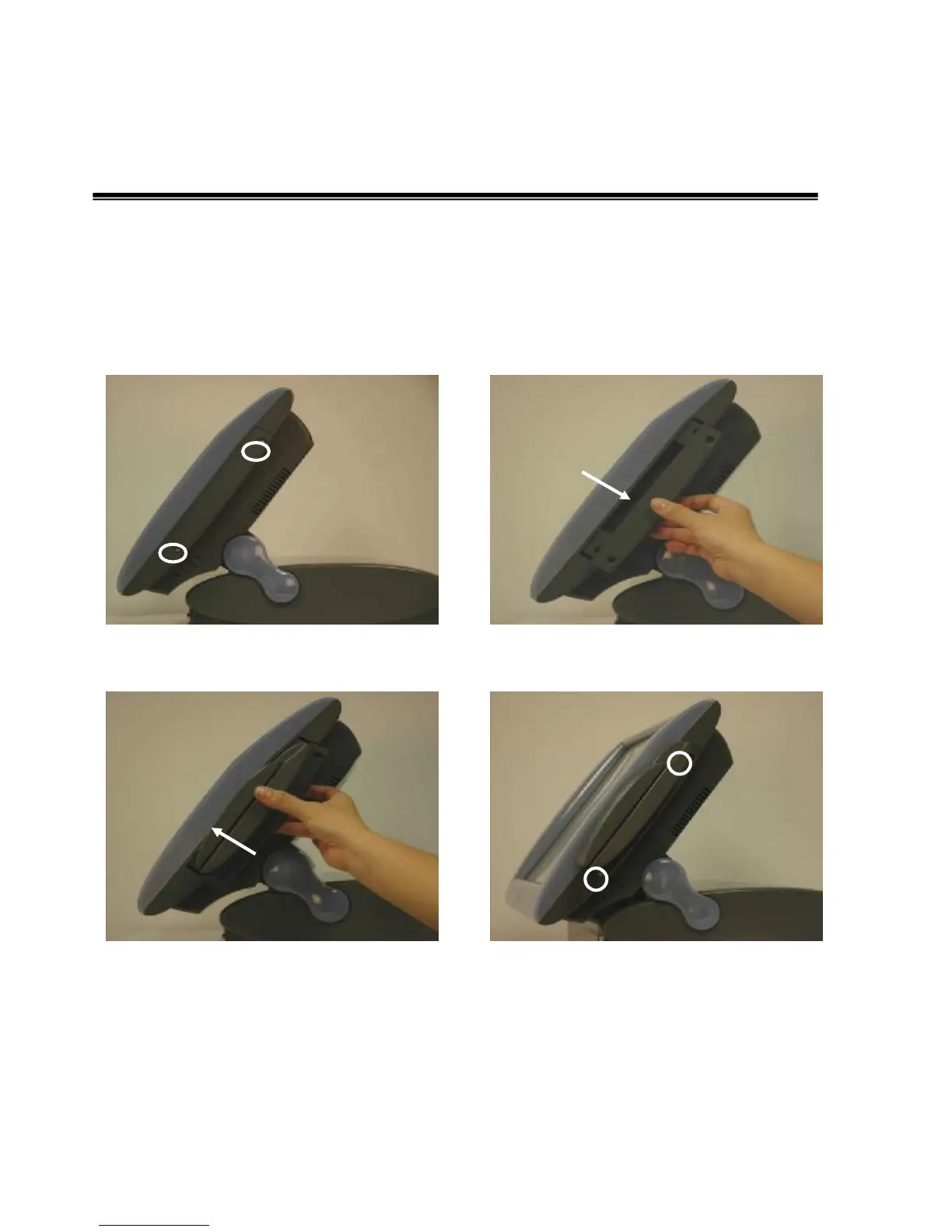

4.1. MSR
a. Remove the screws (2) of the MSR
dummy door.
b. Slide the MSR dummy door out as
shown in the picture.
c. Slide the MSR into position. d. Fasten it to the display housing by
tightening the screws (2).
