5.3. Replace I/O Board
The I/O board is located at the base chassis. It is necessary to remove the base
cover bracket as described in chapter 5.1.

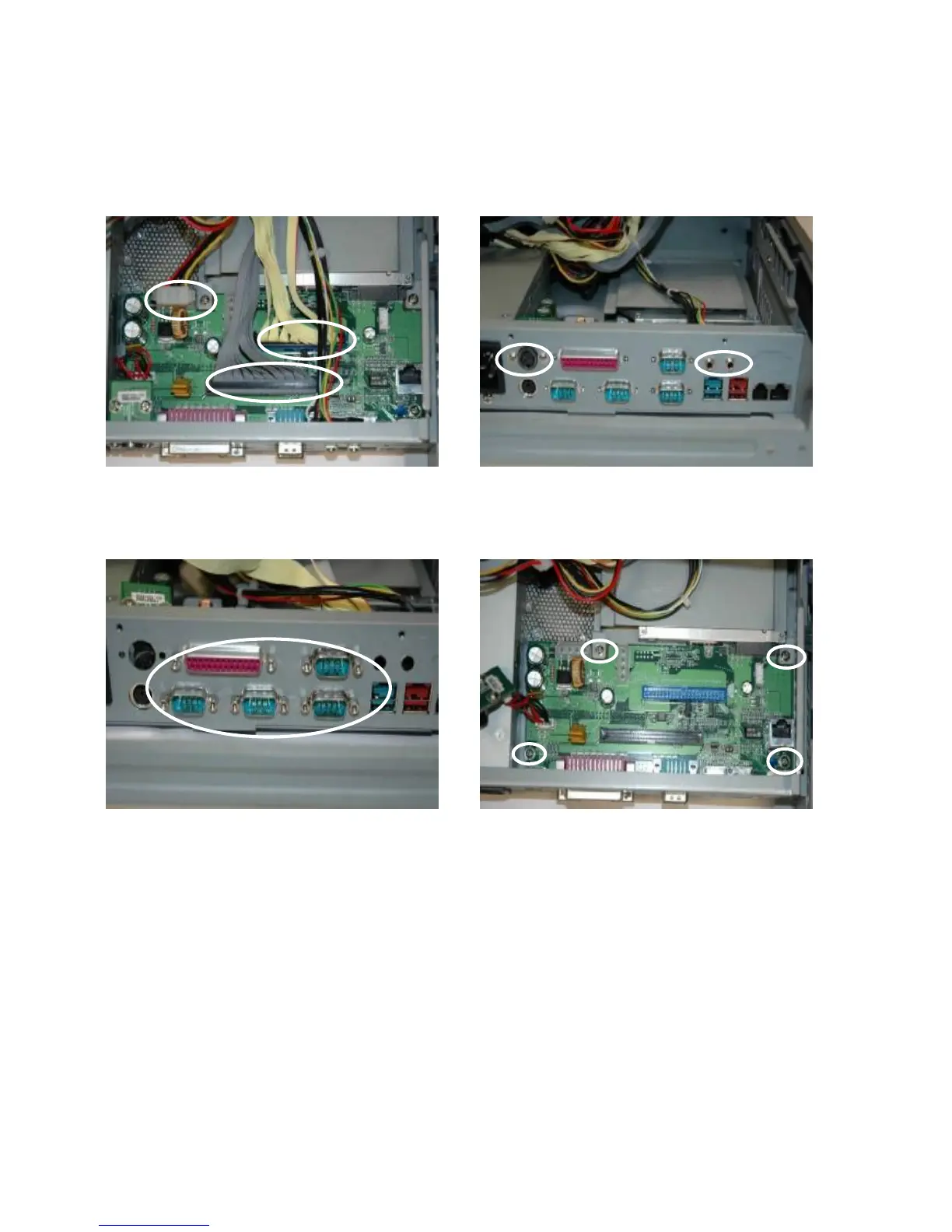

a. Disconnect the cables (3) including power
cable, IDE cable and 100 pin cable.
b. Remove the screws (2) of the 24V DC
port and remove the screws (2) of the
line-in and line-out.
c. Remove the 3/16 Hex Screws (10) that
secure the board.
d. Remove the screws (4) to replace the I/O
board.
