4.2. VFD Customer Display

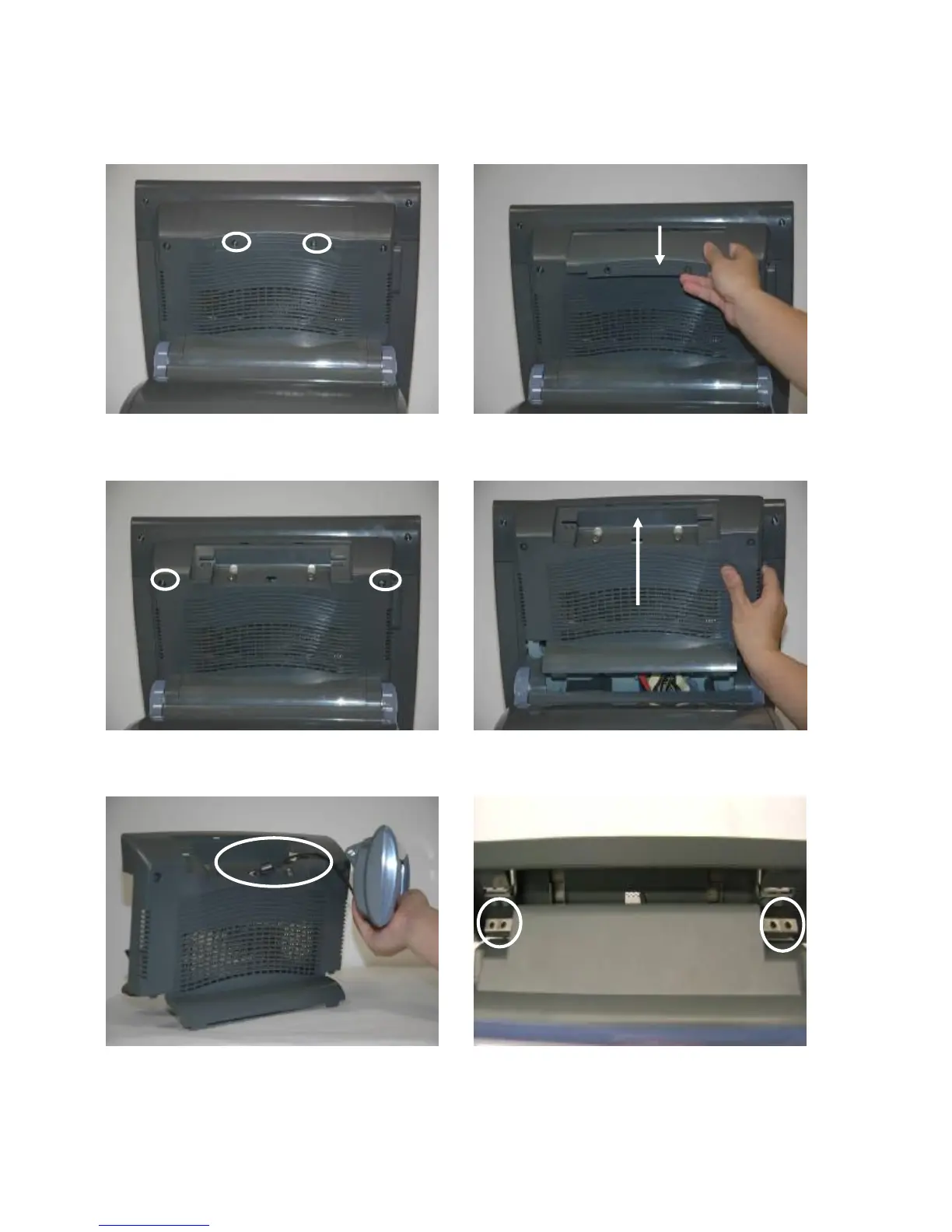

a. Remove the screws (2) of the VFD
dummy door.
b. Slide the VFD dummy door out.
c. Remove the screws (2) of the CPU RAM
door.
d. Slide the CPU RAM door out.
e. Pass the VFD cable through the hole as
shown in the picture.
f. Click both sides of the VFD assembly into
the position as shown in the picture.
