5.5. Replace Power Supply
The power supply is located in the base chassis. It is necessary to remove the
base cover bracket first as described in chapter 5.1.

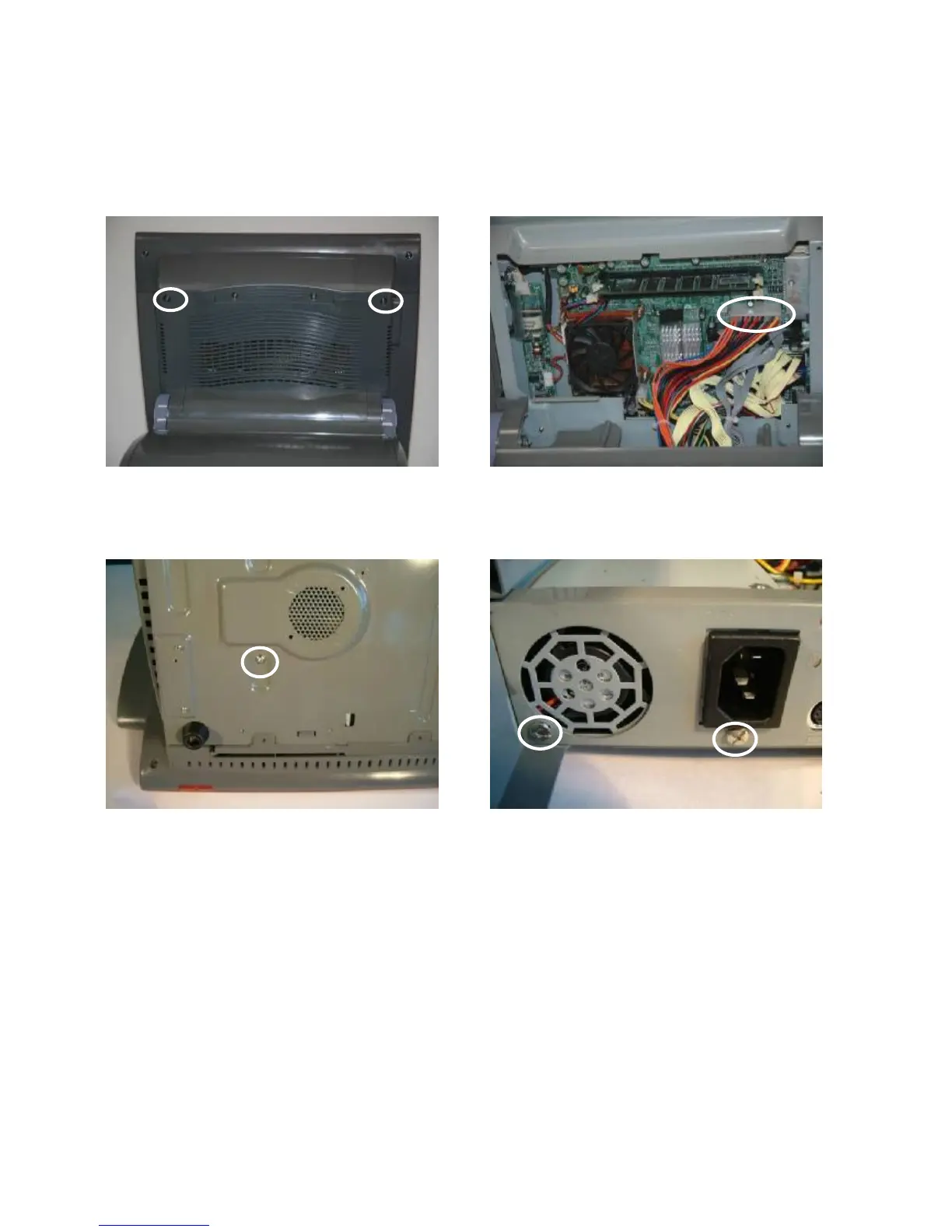

a. Remove the screws (2) to take the CPU
ram door out.
b. Disconnect the 20pin cable (1).
c. Remove the back cover screw (1) at the
bottom of terminal.
d. Remove the screws (2) to replace the
power supply.
