EPOS Odysse - Page 28

28

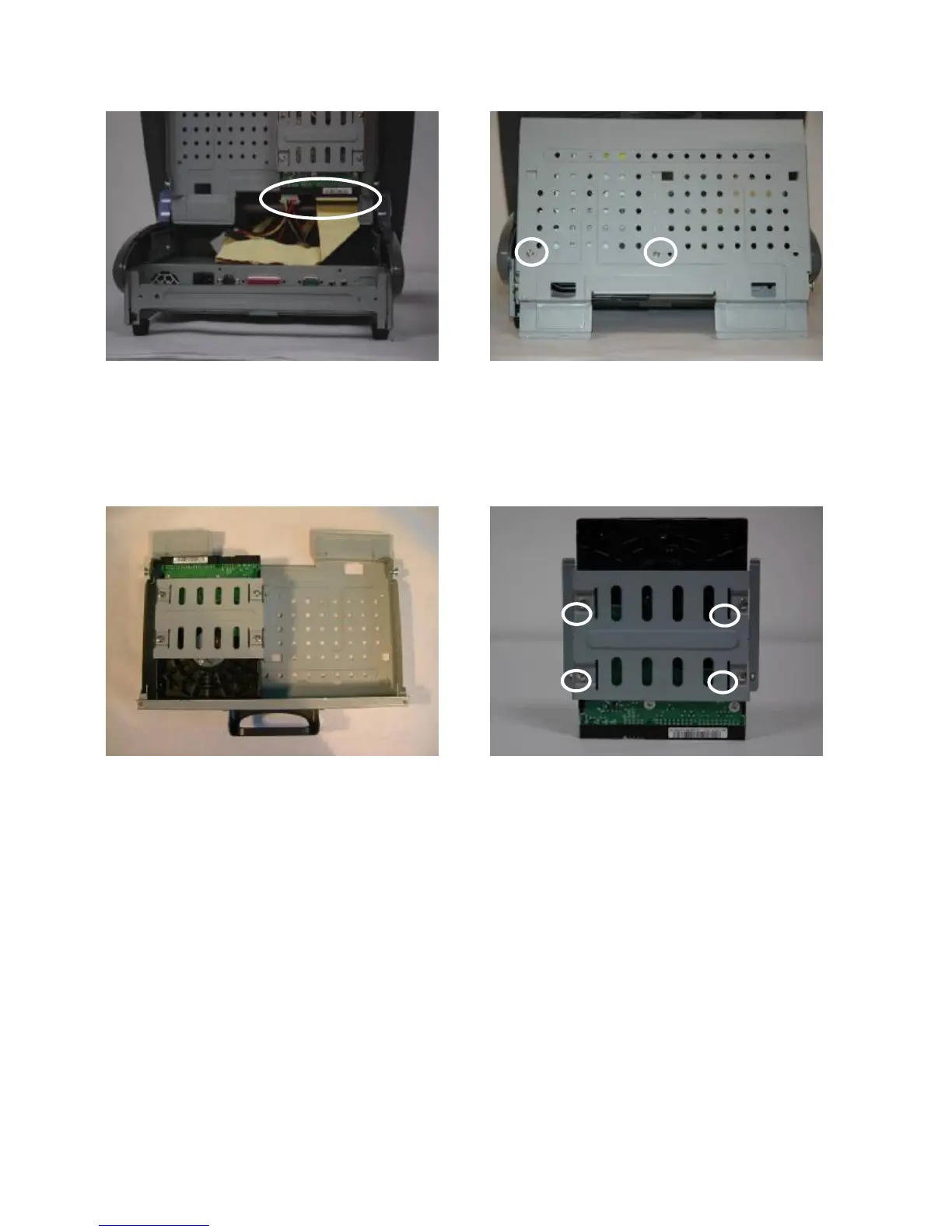

e. Disconnect the IDE and power cables. f. Lift the base cover bracket to disengage
it from the base chassis. Remove the
screws (2).
g. Turn over the base cover bracket to
access the HDD bracket.
h. Remove the screws (4) to separate the
HDD bracket from the HDD.
