36

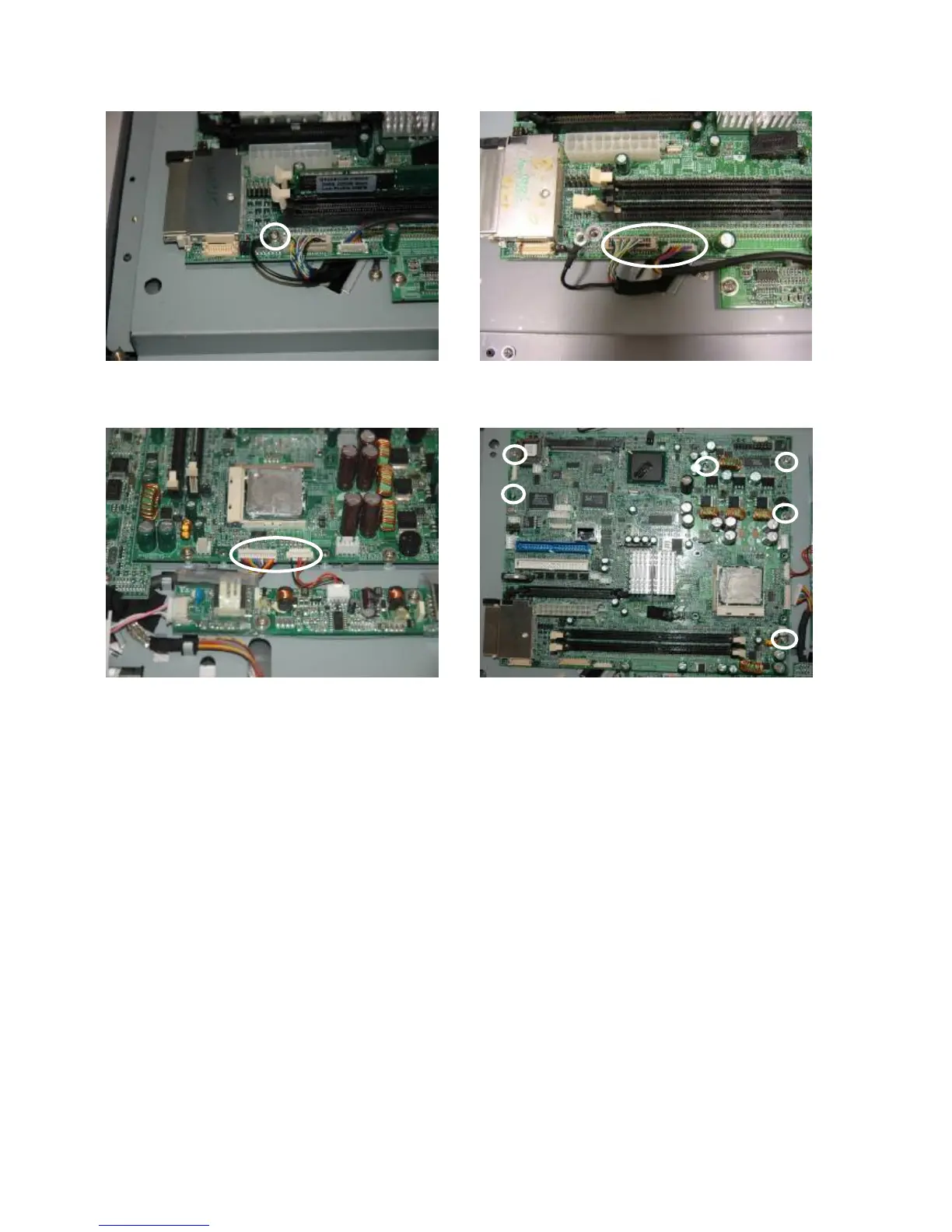

h. Remove the screw (1) of the touch board.
i. Disconnect the cables (2) of the touch
board.
j. Disconnect the cables (2) of the inverter
board.
k. Remove the screws (6) to remove the
motherboard.
