6

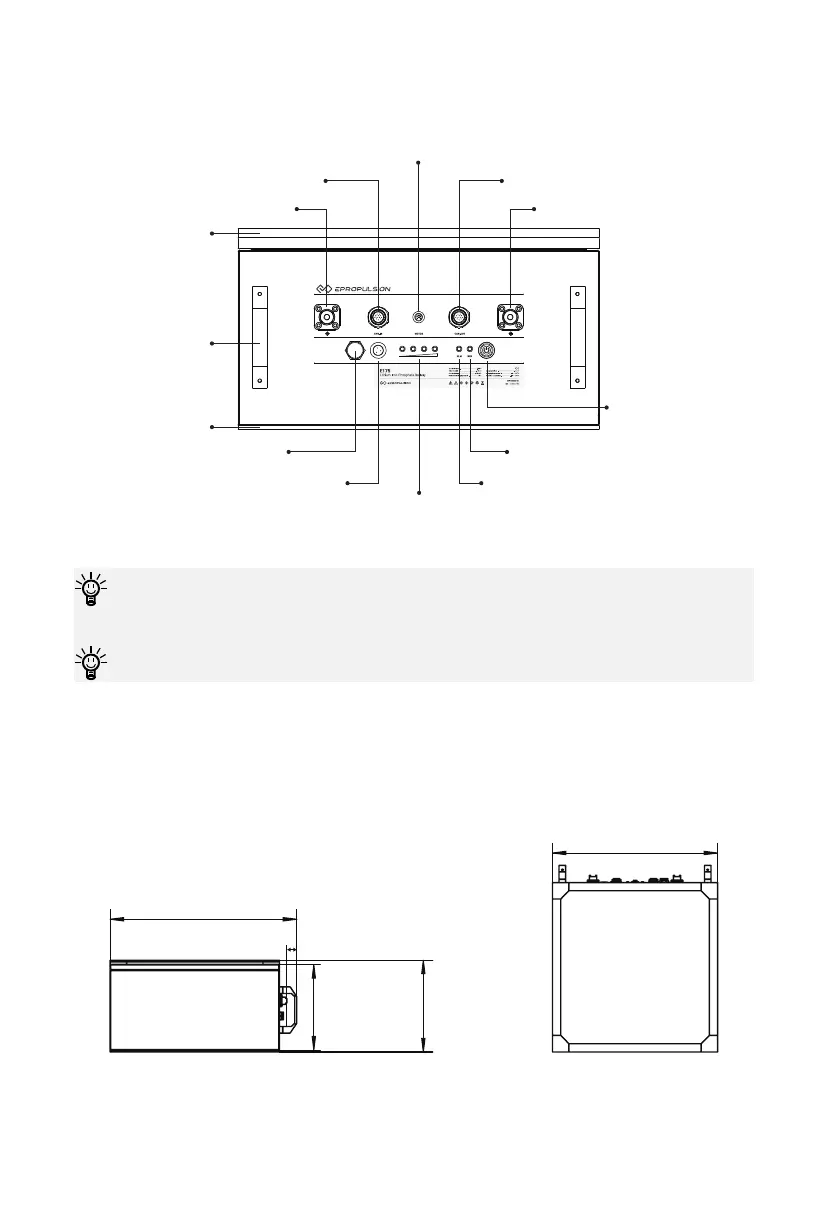

1.2 Parts and Diagram
Figure 1-1
CAN-IN port can be connected with E battery remote switch, E battery
communication terminator or CAN-OUT port.
CAN-OUT port can be connected with the charger or CAN-IN port.
Figure 1-2
Battery positive terminal
Battery level indicator
Valve
Buzzer Alarm indicator
Running indicator
Power Button
CAN-IN port CAN-OUT port
Motor communication port
Battery negative terminal
Handle
(Detachable)
Protective foam
Protective foam
E40: 390
E80: 440
E175: 565
Unit: mm
25
E40: 207
E80: 212
E175: 277
E40: 190
E80: 195
E175: 260
E40: 420
E80: 555
E175: 500
