11

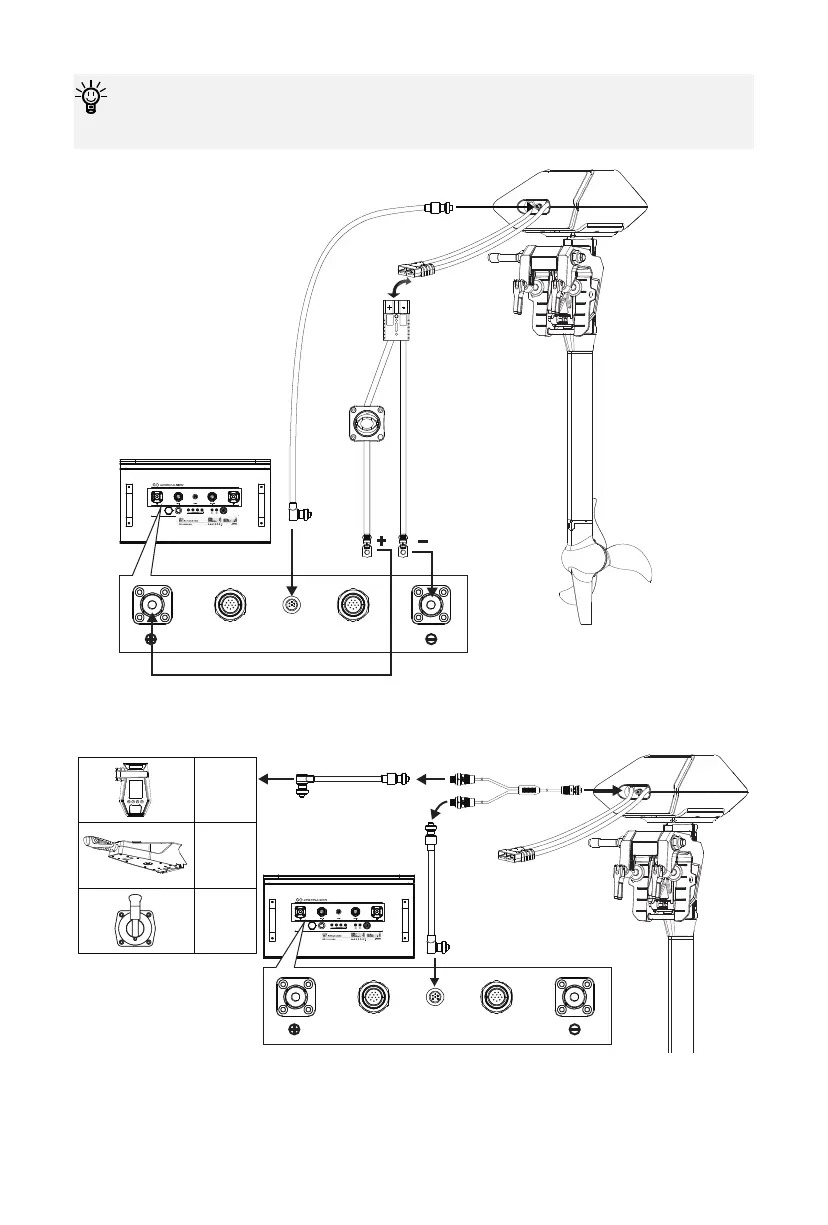

Y-type communication cable can be connected with the motor communication
port on the battery or the communication port of the outboard motor.
Figure 2-1
Figure 2-2
CAN-IN CAN-OUTMOTOR
Y type communication cable
Remote
Control
Tiller
Handle
Side
Mount
Control
CAN-IN CAN-OUTMOTOR
