16

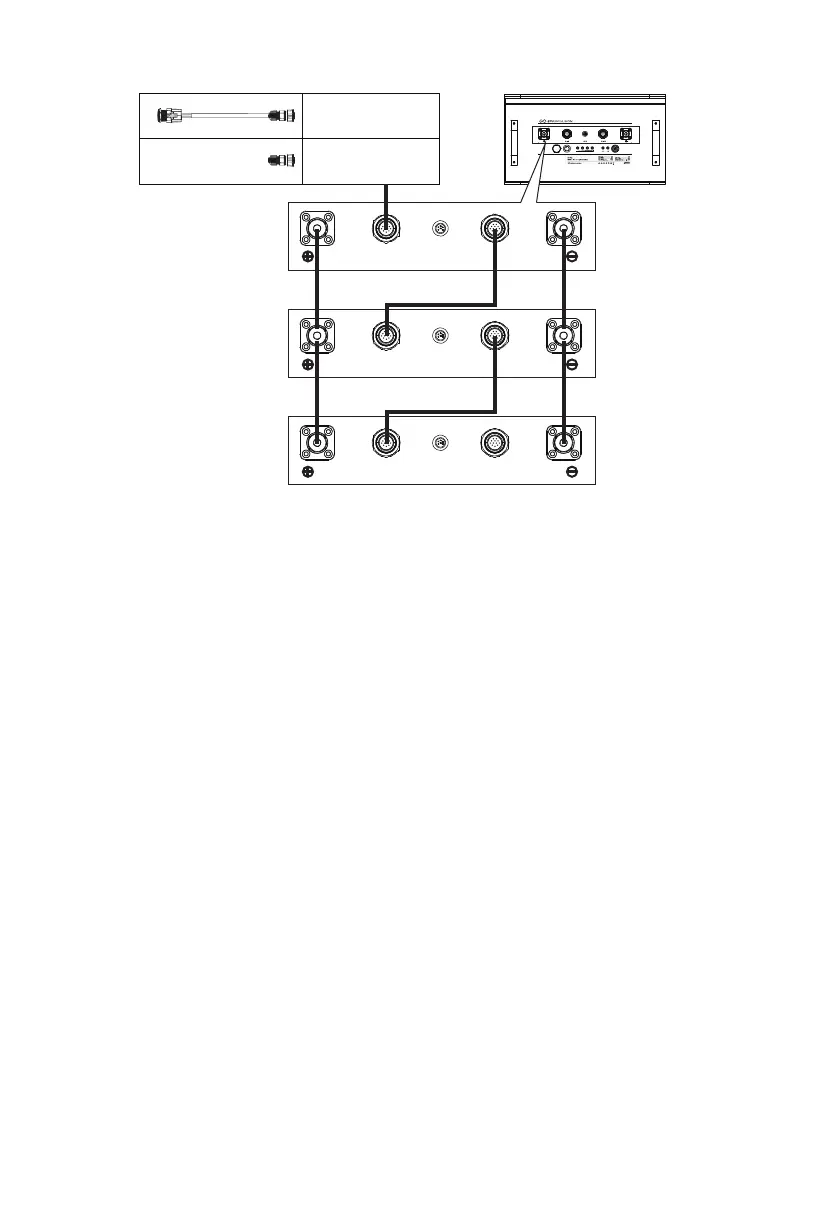

Figure 2-5
CAN-IN CAN-OUTMOTOR
CAN-IN CAN-OUTMOTOR
CAN-IN CAN-OUTMOTOR
Remote
Switch
1#Battery
2#Battery
3#Battery
Communication
Terminator
Battery Bridging
Cable
Battery Bridging
Cable
Battery Bridging
Cable
Battery Bridging
Cable
E battery
communication cable
E Battery
Communication Cable
