3.
4.
Plug the interface board into the connector marked CN2 on the
main circuit board of the printer.

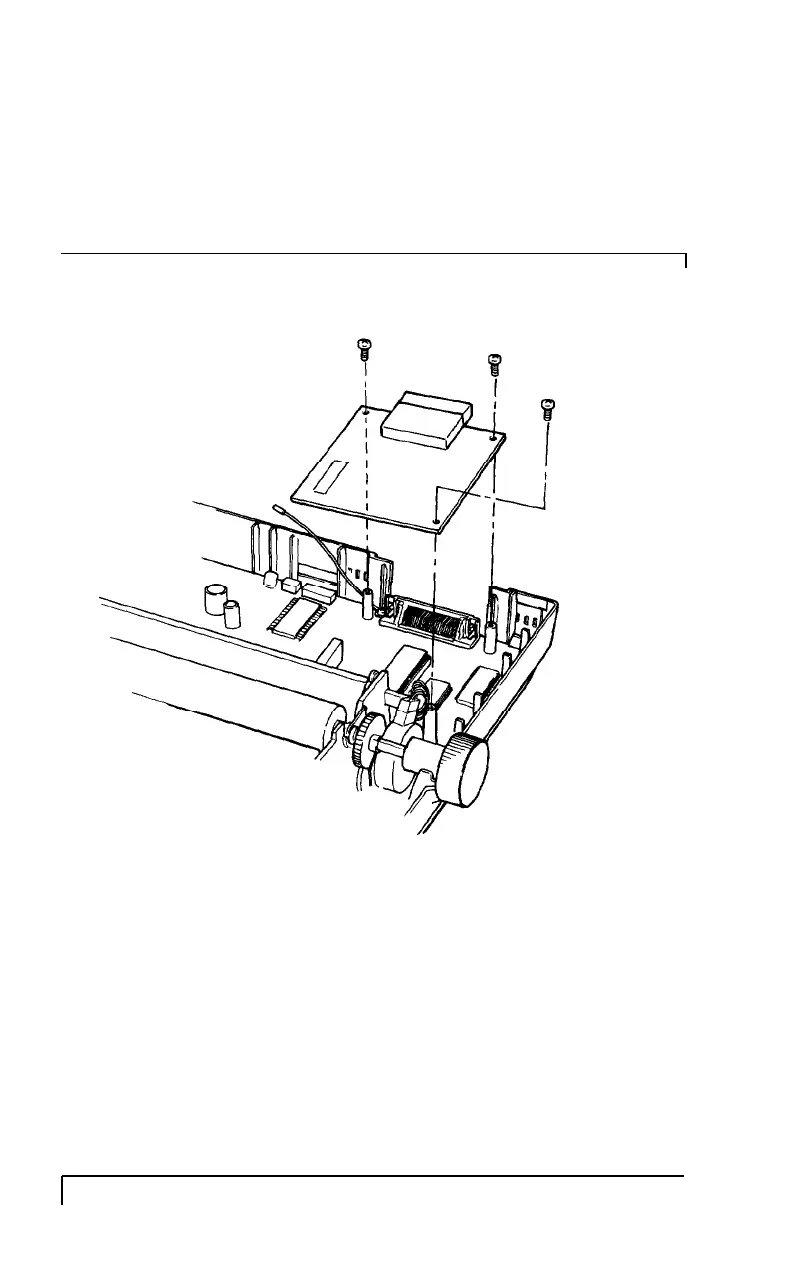

Secure the board to the three supports with the screws provided, as
shown in Figure E-5.
Figure E-5.
Securing the board
E-6
Choosing and Setting Up Optional Interfaces
