Name Function
C
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.41
D
Screw hole for the
wireless LAN unit
cover
(EB-1776W/EB-1771W/
EB-1761W only)
Screw hole to fix the wireless LAN unit cover.
When installing the wireless LAN unit, make sure you
secure the wireless LAN unit cover with the screw
supplied.

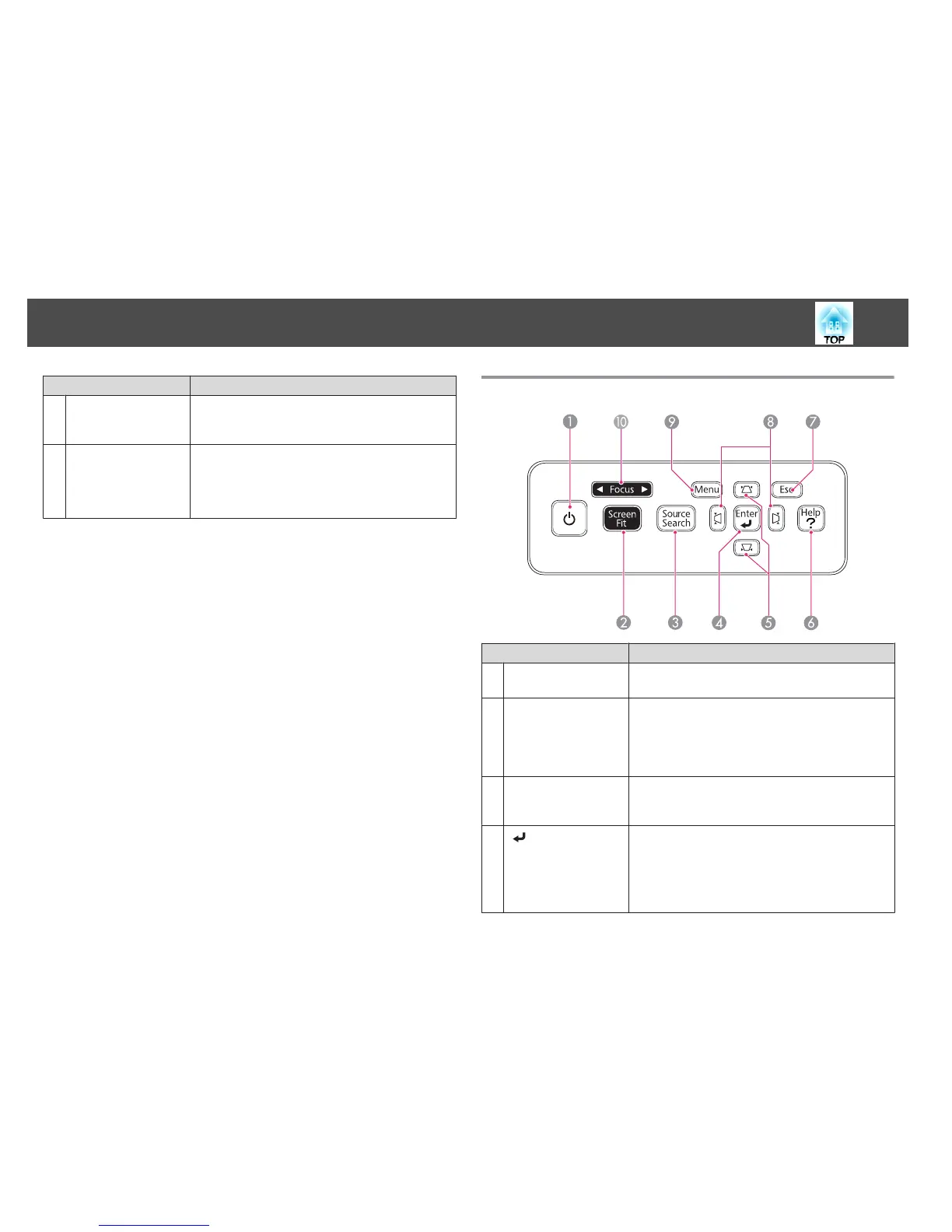

Control Panel
Name Function
A
[t] button
Turns the projector power on or off.
s "From Installation to Projection" p.29
B
[Screen Fit] button
(EB-1776W only)
Adjusts the projected image so that it fits the screen frame.
s "Automatically Adjust to Fit into the Screen Frame -
Screen Fit - (EB-1776W only)" p.35
This button is disabled when the projector is suspended
from a ceiling.
C
[Source Search]
button
Changes to the next input source that is sending an image.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.30
D
[ ] button
• When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
• If pressed during projection of computer signal images,
it automatically adjusts the Tracking, Sync., and
Position to project the optimum image.
Part Names and Functions
14
