Connecting Image Sources

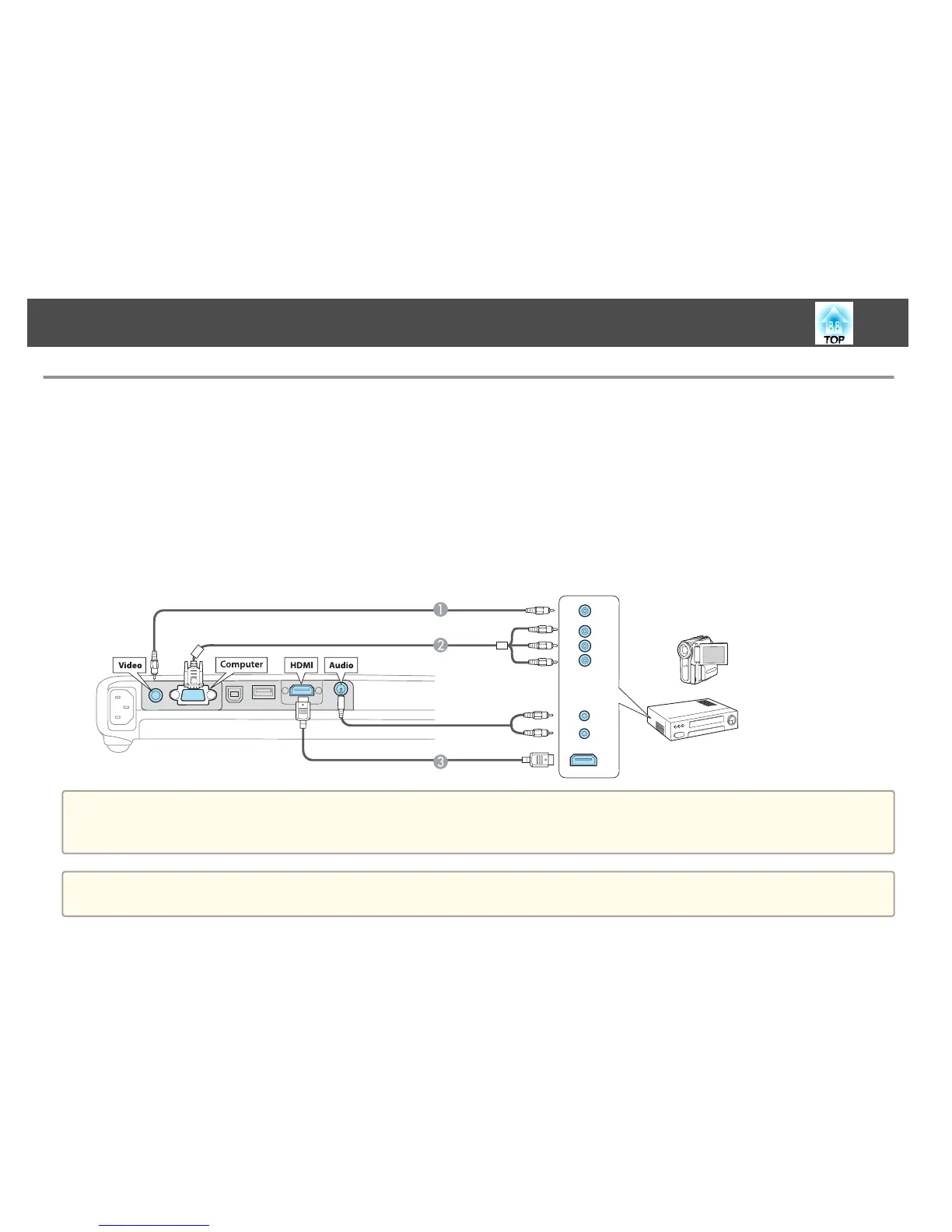

To project images from DVD players or VHS video and so on, connect to the projector using one of the following methods.
A
When using a commercially available video cable
Connect the video output port on the image source to the projector's Video port. You can output audio from the projector's speaker by connecting the audio output port on the video
equipment to the projector's Audio port using a commercially available audio cable.
B
When using the optional component video cable
s "Optional Accessories" p.121
Connect the component output port on the image source to the projector's Computer input port. You can output audio from the projector's speaker by connecting the audio output
port on the video equipment to the projector's Audio port using a commercially available audio cable.
C
When using a commercially available HDMI cable
Connect the HDMI port on the image source to the projector's HDMI port. You can send the image source's audio with the projected image.
Y
Cb/Pb
L-Audio-R
Cr/Pr
VIDEO
Attention
• If the input source is on when you connect it to the projector, it could cause a malfunction.
• If the orientation or shape of the plug differs, do not try to force it in. The device could be damaged or could malfunction.
a
• If the source you want to connect to has an unusually shaped port, use the cable supplied with the device or an optional cable to connect to the projector.
• When using a commercially available 2RCA(L/R)/stereo mini-pin audio cable, make sure it is labeled "No resistance".
Connecting Equipment
25
To Next Page
