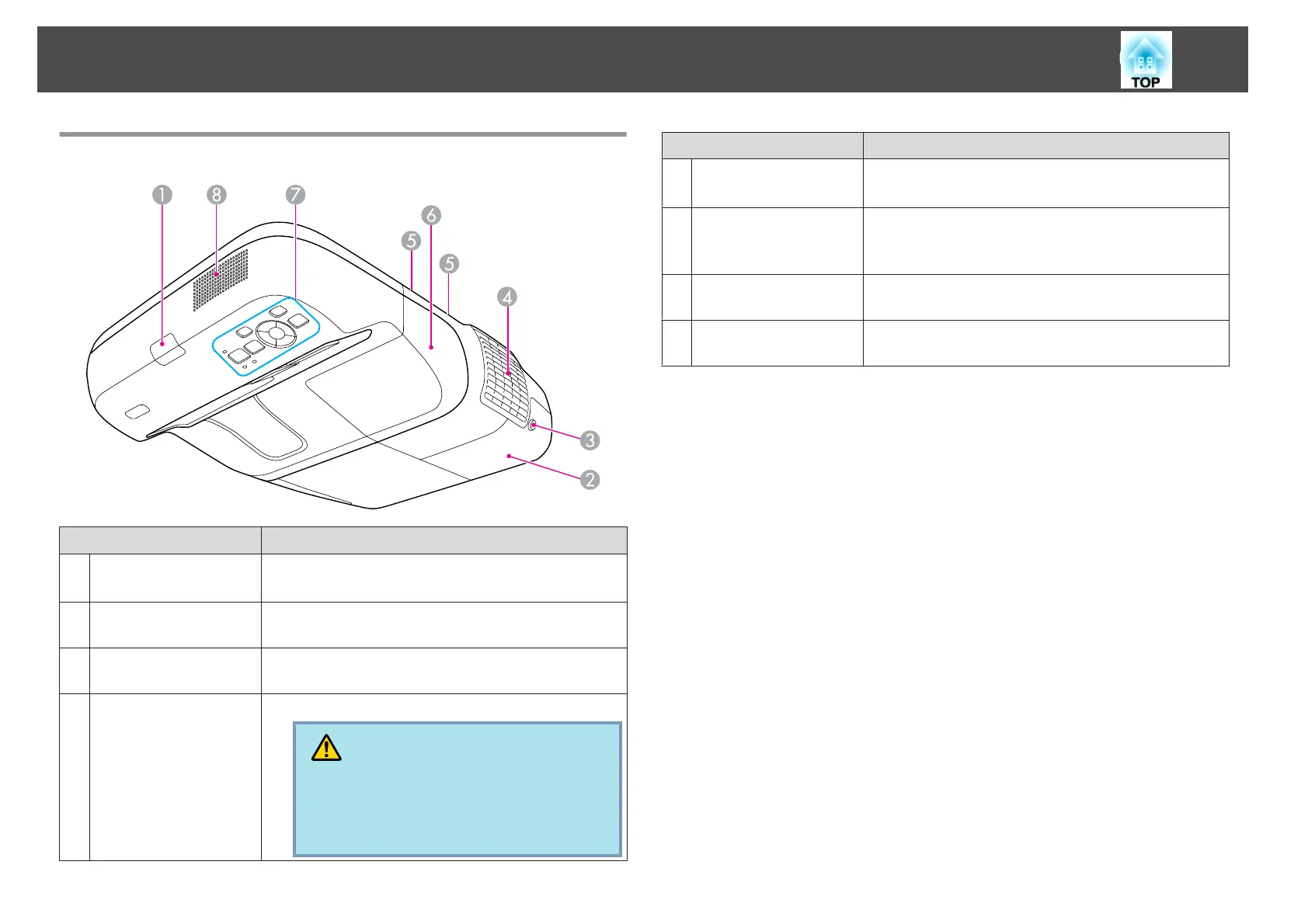

Front/Top
Name Function
A
Remote Receiver
Receives signals from the remote control.
s Quick Start Guide
B
Lamp cover
Open this cover when replacing the projector's Lamp.
s p.112
C
Lamp Cover Fixing
Screw
Screw to fix the Lamp cover in place. s p.112
D
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent.
Name Function
E
Cable cover fixing
screws
Screws to fix the cable cover in place.
s Quick Start Guide
F
Cable cover
When connecting to an input port, loosen the two screws
and open this cover.
s Quick Start Guide
G
Control panel
Allows you to operate and check the status of the
projector. s p.15
H
Speaker
Outputs audio from the Microphone (Mic) and the image
currently being projected.
