Projector Parts and Functions
14
Name Function
C
Interactive pen
receiver
(EB-695Wi/EB-
685Wi/EB-
680Wi/EB-675Wi)
Receives signals from the interactive pen.
D
Obstacle sensor Detects obstacles that are interfering with the
projection area.
E
Remote receiver Receives signals from the remote control.
F
Projection window Images are projected from here.
Warning
• Do not look into the projection window
while projecting.
• Do not place any objects or put your hand
near the projection window. It could cause
burns, fire, or the object to warp because this
area reaches a high temperature due to the
concentrated projection light.
G
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
H
Air filter cover Open to access the air filter or focus lever.
I
Air intake vent (air
filter)
Takes in air to cool the projector internally.
J
Focus lever Adjusts the image focus.
Open the air filter cover to operate.

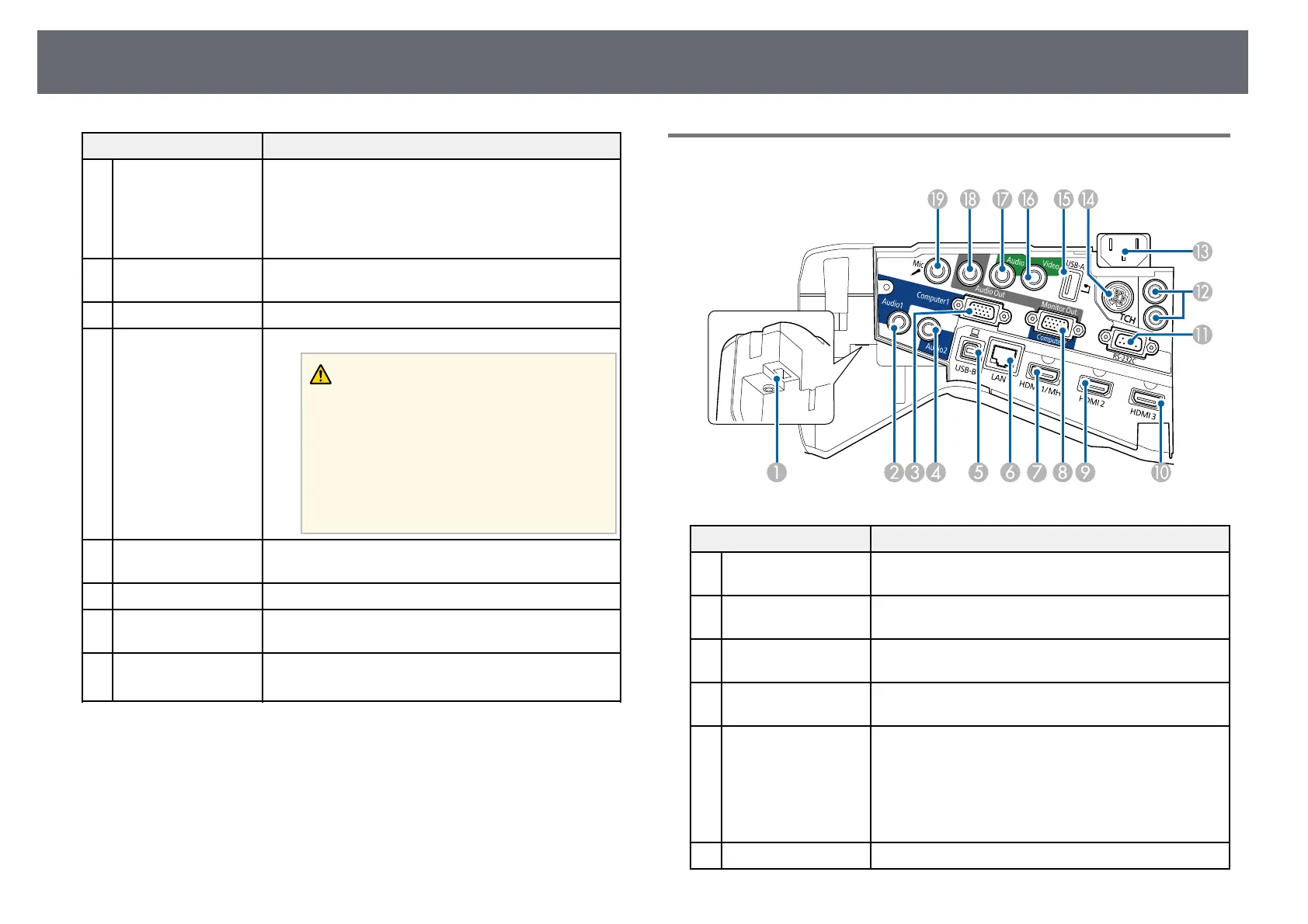

Projector Parts - Interface
Name Function
A
Wireless LAN module
slot
Install the optional Wireless LAN module.
B
Audio 1 port Inputs audio from equipment connected to the
Computer1 port.
C
Computer1 port Inputs image signals from a computer and component
video signals from other video sources.
D
Audio 2 port Inputs audio from equipment connected to the
Computer2 port.
E
USB-B port Connects a USB cable to the computer to project
computer images or to use the Wireless Mouse
function.
Connects the projector to a computer via the supplied
USB cable to use the interactive pen as a mouse (EB-
695Wi/EB-685Wi/EB-680Wi/EB-675Wi).
F
LAN port Connects a LAN cable to connect to a network.
To Next Page
